ZLINK
Z-Wave Plug-In On/Off Switch
PA-100
On/Off Power Switch
HW: 255 FW: 50.03
ZM5202
6.81.00
0x0315 (789)
0x4447 (17479)
0x3031 (12337)
ZC10-18025998
2018-02-07 22:34:48.459581
N/A
Enhanced 232 Slave
Always On Slave
ZLINK PA-100 is a Z-Wave Plug-In switch designed for wireless on-off control of connected lighting and appliance loads
ZLINK PA-100 is a Z-Wave Plus certified device with S2 security and SmartStart features. You can now add this device securely and with ease using QR code on the product with compatible gateways supporting S2 and Smart Start. PA-100 communicates with other Z-Wave certified devices and updates your home into a smart home. PA-100 can be used to turn On or Off lamps or AC operated appliances. Each Z-Wave device also serves as a node to repeat the signal in the network, thus, extending the overall Z-Wave mesh wireless network range. Additional Features: • Power 120 VAC, 60Hz, up to 1800 watts • Region US: 908.4, 916 MHz • Works with incandescent, CFL & LED lights & appliances • Plugs into Standard AC outlet • LED backlit On/Off button • Control lights or appliances via schedule or remotely • Second wall AC outlet remains free • Works with any gateway supporting Z-Wave

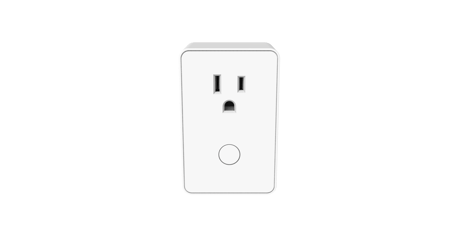

Product Picture
3 - Night Light
The LED indicator will be OFF when the connected light is ON and vice versa. When value =0 the LED indicator will be OFF when the the connected light is ON, and the LED will be ON when the connected light is OFF. If value =1 the LED indicator will be ON when the connected light is ON, and the LED indicator will be OFF when the connected light is OFF. If value =2 the LED indicator will always be OFF regardless of the load statusSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | When value =0 the LED indicator will be OFF when the the connected light is ON, and the LED will be ON when the connected light is OFF. If value =1 the LED indicator will be ON when the connected light is ON, and the LED indicator will be OFF when the connected light is OFF. If value =2 the LED indicator will always be OFF regardless of the load status |
Place your Z-Wave controller in ""Inclusion"" mode. Then tap the button once to initiation Inclusion.
Place your Z-Wave controller in ""Exclusion"" mode. Then tap the button to initiation Exclusion.
1. Unplug the PA-100 from the AC outlet and also unplug the power plugs of the lighting from the module (if plugged in) 2. Press and hold the button on the PA-100 3. Plug the PA-100 back into the AC outlet with the button pressed After 3 seconds, release the button. If you see the button blink, that means that PA-100 has been reset successfully. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
