InWave Pro Z-Wave device database

Brand

ECO LIFE ENGINEERING

Name

MultiSensor 6

Part number

ZW100-G

Device type

Notification Sensor

Description

ECO LIFE ENGINEERING MultiSensor 6 is a Z-Wave motion sensor, temperature sensor, humidity sensor, lighting sensor, Ultraviolet sensor and Vibration sensor, all in one package.

Description long

ECO LIFE ENGINEERING MultiSensor 6 looks like a motion sensor and it acts like one too. But it’s also so much more. Installing this 1 piece of Z-Wave® technology is the same as installing 6 pieces of Z-Wave technology. Your home control network will immediately understand motion, temperature, humidity, light, Ultraviolet and Vibration readings wherever MultiSensor installed. Those intelligent readings will equate to intelligence automation. And intelligent automation will give you the perfect, smart home.

Z-Wave Features

Category (1)

Sensors

Z-Wave Chip Series

500

Region (1)

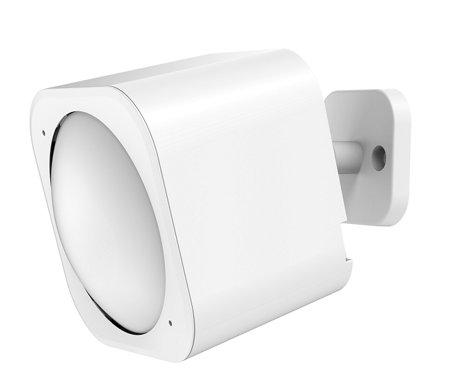

Product Picture

0 / 0

Download configuration parameters

Download configuration parameters and import them in your Smart Home hub.

Please log in to download configuration parameters

2 - Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor.

Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable.

3 - Set the PIR time.

The default PIR time is 4 minutes. The Multisensor will send BASIC SET CC (0x00) to the associated nodes if no motion is triggered again in 4 minutes.

Size: 2 bytes

Default: 240

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
10	3600	The range of PIR time is 10 to 3600.

4 - Set the sensitivity of the motion sensor.

This parameter changes the sensitivity level of the motion detector.

Size: 1 byte

Default: 5

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Minimum Sensitivity
1	1	Sensitivity Level 1 of 6
2	2	Sensitivity Level 2 of 6
3	3	Sensitivity Level 3 of 6
4	4	Sensitivity Level 5 of 6
5	5	Maximum Sensitivity

5 - Which command would be sent when the motion sensor triggered.

To set which command would be sent when the motion sensor triggered.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Send Basic Set CC
2	2	Send Sensor Binary Report CC

8 - Set the timeout of awake after the Wake Up CC is sent out..

Set the timeout of awake after the Wake Up CC is sent out..

Size: 1 byte

Default: 30

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
8	127	Available range is 8 to 127 seconds.

9 - Report the current power mode and the product state for battery power mode

Report the current power mode and the product state for battery power mode. Note: this parameter cannot be used as Set usage.

Size: 2 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	USB power mode
256	256	Keep sleep state for Battery power mode
257	257	Keep awake for 10 minutes for battery power mode.

39 - Configure the default low battery value.

Configure the default low battery value. When the current battery level is lower than this value, it will send out the low battery alarm.

Size: 1 byte

Default: 20

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
10	50	Available range is 10% to 50%.

40 - Enable/disable the selective reporting only when measurements reach a certain threshold or percentage

Enable/disable the selective reporting only when measurements reach a certain threshold or percentage. This is used to reduce network traffic. Note: If USB power, the Sensor will check the threshold every 10 seconds. If battery power, the Sensor will check the threshold when it is waken up.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable.

41 - Threshold change in temperature to induce an automatic report.

Threshold change in temperature to induce an automatic report. Note: 1. The unit is Fahrenheit for US version, Celsius for EU/AU version. 2. High byte is the threshold value. Low byte is the unit (0x01=Celsius, 0x02=Fahrenheit). 3. The threshold value (high byte) contains one decimal point. E.g. if the value is set to 20 (0x001401), the threshold value =2.0 ℃ (EU/AU version) or if the value is set to 20 (0x001402), the threshold value= 2.0 ℉ (US version). When the current temperature gap is more then 2.0, which will induce a temperature report to be sent out.

Size: 4 bytes

Default: 20

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
10	2120	Available range of threshold is 1℉ to 212℉.

42 - Threshold change in humidity to induce an automatic report

Threshold change in humidity to induce an automatic report. Note: 1. The unit is %. 2. The default value is 10, which means that if the current humidity gap is more than 10%, it will send out a humidity report.

Size: 1 byte

Default: 10

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	100	Available range is 1% to 100%.

43 - Threshold change in luminance to induce an automatic report.

Threshold change in luminance to induce an automatic report.

Size: 2 bytes

Default: 100

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	30000	Available range is 1 LUX to 30000 LUX.

44 - Threshold change in battery level to induce an automatic report.

Threshold change in battery level to induce an automatic report. Note: 1. The unit is %. 2. The default value is 10, which means that if the current battery level gap is more than 10%, it will send out a battery report.

Size: 1 byte

Default: 10

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	100	Available range is 1% to 100%.

45 - Threshold change in ultraviolet to induce an automatic report.

Threshold change in ultraviolet to induce an automatic report.

Size: 1 byte

Default: 2

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	11	Available range is 1 to 11.

46 - Enable/disable to send the alarm report of low temperature

Enable/disable to send the alarm report of low temperature(<-15℃). Note: If it is enabled, the MultiSensor will send a report of Multi Level Temperature CC to controller when the current temperature is less than -15℃).

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable.
1	30000	Available range is 1LUX to 30000LUX.

48 - Enable/disable to send a report when the measurement is more than the upper limit value or less than the lower limit value.

Enable/disable to send a report when the measurement is more than the upper limit value or less than the lower limit value.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable.

49 - Set the upper limit value of temperature sensor.

Set the upper limit value of temperature sensor. When the measurement is more than this upper limit, which will trigger to sent out a sensor report.

Size: 4 bytes

Default: 824

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
-400	2120	Available range is -40.0℉ to 212.0℉.

50 - Set the lower limit value of temperature sensor.

Set the lower limit value of temperature sensor. When the measurement is less than this lower limit, which will trigger to sent out a sensor report. High byte is the lower limit value.

Size: 4 bytes

Default: 320

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
-400	2120	Available range is -40.0℉ to 212.0℉.

51 - Set the upper limit value of humidity sensor.

Set the upper limit value of humidity sensor. when the measurement is more than this upper limit, which will trigger to sent out a sensor report.

Size: 1 byte

Default: 60

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	100	Available range is 0% to 100%.

52 - Set the lower limit value of humidity sensor.

Set the lower limit value of humidity sensor. When the measurement is less than this lower limit, which will trigger to sent out a sensor report.

Size: 1 byte

Default: 50

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	100	Available range is 0% to 100%.

53 - Set the upper limit value of Lighting sensor

Set the upper limit value of Lighting sensor. When the measurement is more than this upper limit, which will trigger to sent out a sensor report.

Size: 1 byte

Default: 1000

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	30000	Available range is 0 to 30000LUX.

54 - Set the lower limit value of Lighting sensor.

Set the lower limit value of Lighting sensor. When the measurement is less than this lower limit, which will trigger to sent out a sensor report.

Size: 1 byte

Default: 100

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	30000	Available range is 0 to 30000LUX.

55 - Set the upper limit value of ultraviolet sensor.

Set the upper limit value of ultraviolet sensor. When the measurement is more than this upper limit, which will trigger to sent out a sensor report.

Size: 1 byte

Default: 8

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	11	Available range is 1 to 11.

56 - Set the lower limit value of ultraviolet sensor.

Set the lower limit value of ultraviolet sensor. When the measurement is less than this upper limit, which will trigger to sent out a sensor report.

Size: 1 byte

Default: 4

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	11	Available range is 1 to 11.

57 - Set the recover limit value of temperature sensor.

Note: 1. When the current measurement <= (Upper limit – Recover limit), the upper limit report is enabled and then it would send out a sensor report when the next measurement is more than the upper limit. After that the upper limit report would be disabled again until the measurement <= (Upper limit – Recover limit). 2. When the current measurement >= (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit). 3. High byte is the recover limit value. Low byte is the unit (0x01=Celsius, 0x02=Fahrenheit).

Size: 2 bytes

Default: 20

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
10	255	Available range is 1.0℉ to 25.5℉

58 - Set the recover limit value of humidity sensor.

Set the recover limit value of humidity sensor. Note: 1. When the current measurement <= (Upper limit – Recover limit), the upper limit report is enabled and then it would send out a sensor report when the next measurement is more than the upper limit. After that the upper limit report would be disabled again until the measurement <= (Upper limit – Recover limit). 2. When the current measurement >= (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit).

Size: 1 byte

Default: 5

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	50	Available range is 1 to 50%

59 - Set the recover limit value of Lighting sensor.

Set the recover limit value of Lighting sensor. Note: 1. When the current measurement <= (Upper limit – Recover limit), the upper limit report is enabled and then it would send out a sensor report when the next measurement is more than the upper limit. After that the upper limit report would be disabled again until the measurement <= (Upper limit – Recover limit). 2. When the current measurement >= (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit). 3. Unit = 10×Recover limit (Lux)

Size: 1 byte

Default: 100

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	127	Available range is 10Lux to 1270Lux

60 - Set the recover limit value of Ultraviolet sensor.

Set the recover limit value of Ultraviolet sensor. Note: 1. When the current measurement <= (Upper limit – Recover limit), the upper limit report is enabled and then it would send out a sensor report when the next measurement is more than the upper limit. After that the upper limit report would be disabled again until the measurement <= (Upper limit – Recover limit). 2. When the current measurement >= (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit).

Size: 1 byte

Default: 2

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	USB power mode
1	5	Available range is 1 to 5.
256	256	Keep sleep state for Battery power mode
257	257	Keep awake for 10 minutes for battery power mode.

61 - Get the out-of-limit state of the Sensors.

Get the out-of-limit state of the Sensors.

Size: 2 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Temperature sensor is out of the lower limit
2	2	Humidity sensor is out of the lower limit
4	4	Luminance sensor is out of the lower limit
8	8	Ultraviolet sensor is out of the lower limit
16	16	Temperature sensor is out of the upper limit
32	32	Humidity sensor is out of the upper limit
64	64	Luminance sensor is out of the upper limit
128	128	Ultraviolet sensor is out of the upper limit

64 - Set the default unit of the automatic temperature report in parameter 101-103.

Set the default unit of the automatic temperature report in parameter 101-103.

Size: 1 byte

Default: 2

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	The unit is Celsius.
2	2	The unit is Fahrenheit.

81 - Enable/disable the LED blinking when the PIR is triggered.

Enable/disable the LED blinking when the PIR is triggered.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Enable.
1	1	Disable

100 - Set the parameter 101-103 to default values.

Set the parameter 101-103 to default values.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Set the parameter 101-103 to default values.

101 - To set which report would be sent in Report group 1

To set which report would be sent in Report group 1. Note: You can also set all sensor reports to be sent out at the same time. E.g. If you want the batter report and temperature report to be sent out at the same time, you just need to set the configuration value to 33 (1+32).

Size: 4 bytes

Default: 241

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Battery Report is enabled.
16	16	Ultraviolet Report is enabled.
32	32	Temperature Report is enabled.
64	64	Humidity Report is enabled.
128	128	Luminance Report is enabled.

102 - To set which report would be sent in Report group 2

To set which report would be sent in Report group 2. Note: You can also set all sensor reports to be sent out at the same time. E.g. If you want the batter report and temperature report to be sent out at the same time, you just need to set the configuration value to 33 (1+32).

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Battery Report is enabled.
16	16	Ultraviolet Report is enabled.
32	32	Temperature Report is enabled.
64	64	Humidity Report is enabled.
128	128	Luminance Report is enabled.

103 - To set which report would be sent in Report group 3

To set which report would be sent in Report group 3. Note: You can also set all sensor reports to be sent out at the same time. E.g. If you want the batter report and temperature report to be sent out at the same time, you just need to set the configuration value to 33 (1+32).

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Battery Report is enabled.
16	16	Ultraviolet Report is enabled.
32	32	Temperature Report is enabled.
64	64	Humidity Report is enabled.
128	128	Luminance Report is enabled.

111 - To set the interval time of sending reports in Report group 1

To set the interval time of sending reports in Report group 1

Size: 4 bytes

Default: 3600

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
5	2678400	Available range is 5 to 2678400 seconds.

112 - To set the interval time of sending reports in Report group 2

To set the interval time of sending reports in Report group 2

Size: 4 bytes

Default: 3600

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
5	2678400	Available range is 5 to 2678400 seconds.

113 - To set the interval time of sending reports in Report group 3

To set the interval time of sending reports in Report group 3

Size: 4 bytes

Default: 3600

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
5	2678400	Available range is 5 to 2678400 seconds.

201 - Temperature sensor calibration

Temperature sensor calibration. Note: 1. High byte is the calibration value. Low byte is the unit (0x01=Celsius, 0x02=Fahrenheit) 2. The calibration value (high byte) contains one decimal point. E.g. if the value is set to 20 (0x1401), the calibration value is 2.0 ℃ (EU/AU version) or if the value is set to 20 (0x1402), the calibration value is 2.0 ℉(US version) 3. The calibration value (high byte) = standard value - measure value. E.g. If measure value =25.3℃ and the standard value = 23.2℃, so the calibration value= 23.2℃ - 25.3℃= -2.1℃ (0xEB). If the measure value =30.1℃ and the standard value = 33.2℃, so the calibration value= 33.2℃ - 30.1℃=3.1℃ (0x1F).

Size: 2 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
-128	127	Available range is -12.8℃ to 12.7℃.

202 - Humidity sensor calibration

Humidity sensor calibration. The calibration value = standard value - measure value. E.g. If measure value =80RH and the standard value = 75RH, so the calibration value= 75RH – 80RH= -5RH (0xFB). If the measure value =85RH and the standard value = 90RH, so the calibration value= 90RH – 85RH=5RH (0x05).

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
-50	50	Available range is -50RH to 50RH.

203 - Luminance sensor calibration

Luminance sensor calibration. The calibration value = standard value - measure value. E.g. If measure value =800Lux and the standard value = 750Lux, so the calibration value= 750 – 800= -50 (0xFFCE). If the measure value =850Lux and the standard value = 900Lux, so the calibration value= 900 – 850=50 (0x0032)

Size: 2 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
-1000	1000	Available range is -1000Lux to 1000Lux.

204 - Ultraviolet sensor calibration

Ultraviolet sensor calibration. The calibration value = standard value - measure value. E.g. If measure value =9 and the standard value = 8, so the calibration value= 8 – 9= -1 (0xFE). If the measure value =7 and the standard value = 9, so the calibration value= 9 – 7=2 (0x02).

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
-10	10	Available range is -10 to 10.

252 - Enable/disable all configuration parameters to be locked

Enable/disable all configuration parameters to be locked.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable.

255 - Reset to factory defaults.

Reset to factory defaults.

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Reset all configuration parameters to factory defaults.
1431655765	1431655765	Reset the product to factory defaults.

Type	Name
Product or Owner's Manual	MultiSensor 6 manual.pdf

Group	Type
Home Security	(Refer to parameters): State idle

Sensor type
Air Temperature
General Purpose
Illuminance
Humidity
Ultraviolet

Loading related devices...
