devolo
HC Dimmer FM
MT 02760
Light Dimmer Switch
HW: 4 FW: 3.08:03.10
ZM5202
6.51.09
0x0175 (373)
0x0001 (1)
0x0051 (81)
ZC10-18025988
2018-02-07 01:32:56.849876
N/A
Enhanced 232 Slave
Always On Slave
The HC Dimmer FM is a MOSFET-switching light device that also supports control of low-voltage halogen lamps with electronic transformers, dimmable compact fluorescent lights, and dimmable LED bulbs.
The HC Dimmer is a MOSFET-switching light device that also supports control of low-voltage halogen lamps with electronic transformers, dimmable compact fluorescent lights, and dimmable LED bulbs. It measures power consumption of the connected device, and can be paired with a digital temperature sensor (sold separately). It supports push-button/momentary switches and toggle switches (default).

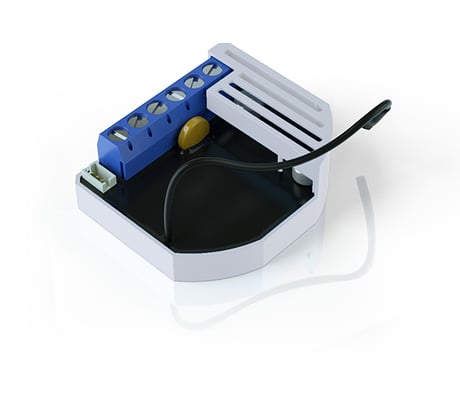

Product Picture
1 - Input 1 switch type
NOTE: Switch connected to S1 terminal is a master switch. It activates the basic functionality of the DimmerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero |
| 1 | 1 | bi-stable switch type |
2 - Input 2 switch type
NOTE: to enable this function, Parameter 20 or Parameter 100 has to be set.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero |
| 1 | 1 | bi-stable switch type |
3 - Input 2 contact type
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | NO (normally open) input type |
| 1 | 1 | NC (normally close) input type |
4 - Input 3 contact type
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | NO (normally open) input type |
| 1 | 1 | NC (normally close) input type |
10 - Activate / deactivate functions ALL ON / ALL OFF
Flush Dimmer module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | ALL ON is not active, ALL OFF is not active |
| 1 | 1 | ALL ON is not active, ALL OFF active |
| 2 | 2 | ALL ON active, ALL OFF is not active |
| 255 | 255 | ALL ON active, ALL OFF active |
11 - Automatic turning off output after set time
Automatic turning off output after set timeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto OFF disabled |
| 1 | 32536 | = 1second - 32536 seconds Auto OFF enabled with define time, step is 1 second |
12 - Automatic turning on output after set time
Automatic turning on output after set timeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto ON disabled |
| 1 | 32535 | = 1second - 32535 seconds Auto ON enabled with define time, step is 1 second |
20 - Enable/Disable 3way switch/ additional switch
Dimming is done by push button or switch connected to I1 (by default). Enabling 3way switch, dimming can be controlled by push button or switch connected to I1 and I2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | single push button (connected to I1) |
| 1 | 1 | 3 way switch (connected to I1 and I2) |
| 2 | 2 | additional switch (connected to I2) |
21 - nable/Disable Double click function
Enable/Disable Double click function If Double click function is enabled, a fast double click on the push button will set dimming power at maximum dimming value.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | double click disabled |
| 1 | 1 | double click enabled |
30 - Saving the state of the device after a power failure
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Flush Dimmer module saves its state before power failure (it returns to the last position saved before a power failure) |
| 1 | 1 | Flush Dimmer module does not save the state after a power failure, it returns to "off" position |
40 - Power reporting in Watts on power change
Set value means percentage, set value from 0 - 100=0% - 100%. NOTE: if power changed is less than 1W, the report is not send (pushed), independent of percentage set.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting disabled |
| 1 | 100 | = 1% - 100% Reporting enabled. Power report is send (push) only when actual power in Watts in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1% |
| 5 | 5 | default value |
42 - Power reporting in Watts by time interval
Set value means time interval (0 - 32767) in seconds, when power report is send. Available configuration parametersSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting disabled |
| 1 | 32767 | = 1 second - 32767 seconds. Reporting enabled. Power report is send with time interval set by entered value |
60 - Minimum dimming value
NOTE: The minimum level may not be higher than the maximum level! 1% min. dimming value is defined by Z-Wave multilevel device class.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | = 1% (minimum dimming value) |
| 1 | 98 | = 1% - 98%, step is 1%. Minimum dimming values is set by entered value |
61 - Maximum dimming value
NOTE: The maximum level may not be lower than the minimum level! 99% max. dimming value is defined by Z-Wave multilevel device class.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 99 | = 2% - 99%, step is 1%. Maximum dimming values is set by entered value |
| 99 | 99 | = 99% (Maximum dimming value) |
65 - Dimming time (soft on/off)
Set value means time of moving the Dimmer between min. and max. dimming values by short press of push button I1 or controlled through UI (BasicSet).Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 50 | 255 | = 500 mseconds - 2550 mseconds (2,55s), step is 10 mseconds |
| 100 | 100 | = 1s |
66 - Dimming time when key pressed
Time of moving the Dimmer between min. and max dimming values by continues hold of push button I1 or associated device.Size: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | = 1 second – 255 seconds |
| 3 | 3 | = 3s |
67 - Ignore start level
This parameter is used with association group 3. A receiving device SHOULD respect the start level if the Ignore Start Level bit is 0. A receiving device MUST ignore the start level if the Ignore Start Level bit is 1.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | respect start level |
| 1 | 1 | ignore start level |
68 - Dimming duration
This parameter is used with association group 3. The Duration field MUST specify the time that the transition should take from the current value to the new target value. A supporting device SHOULD respect the specified Duration value.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | dimming duration according to parameter 66 |
| 1 | 127 | from 1 to 127 seconds |
100 - Enable / Disable Endpoints I2 or select
Enabling I2 means that Endpoint (I2) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. Endpoint device type selection: - notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR • default value 0 • 1 - Home Security; Motion Detection, unknown loc. • 2 - CO; Carbon Monoxide detected, unknown loc. • 3 - CO2; Carbon Dioxide detected, unknown loc. • 4 - Water Alarm; Water Leak detected, unknown loc. • 5 - Heat Alarm; Overheat detected, unknown loc. • 6 - Smoke Alarm; Smoke detected, unknown loc. • 0 - Endpoint, I2 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED • 9 - Sensor binary NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! NOTE 2: When the parameter is set to value 9 the notifications are send for Home Security.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Endpoint, I2 disabled |
| 0 | 0 | |
| 1 | 1 | Home Security; Motion Detection, unknown loc. |
| 2 | 2 | CO; Carbon Monoxide detected, unknown loc. |
| 3 | 3 | CO2; Carbon Dioxide detected, unknown loc. |
| 4 | 4 | Water Alarm; Water Leak detected, unknown loc. |
| 5 | 5 | Heat Alarm; Overheat detected, unknown loc. |
| 6 | 6 | Smoke Alarm; Smoke detected, unknown loc. |
| 9 | 9 | Sensor binary |
101 - Enable / Disable Endpoints I3 or select Notification Type and Event
Enabling I3 means that Endpoint (I3) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. Available configuration parameters (data type is 1 Byte DEC): Endpoint device type selection: - notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR • default value 0 • 1 - Home Security; Motion Detection, unknown loc. • 2 - CO; Carbon Monoxide detected, unknown loc. • 3 - CO2; Carbon Dioxide detected, unknown loc. • 4 - Water Alarm; Water Leak detected, unknown loc. • 5 - Heat Alarm; Overheat detected, unknown loc. • 6 - Smoke Alarm; Smoke detected, unknown loc. • 0 - Endpoint, I3 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED • 9 - Sensor binary NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! NOTE 2: When the parameter is set to value 9 the notifications are send for Home Security.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Endpoint, I3 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED |
| 1 | 1 | Home Security; Motion Detection, unknown loc. |
| 2 | 2 | CO; Carbon Monoxide detected, unknown loc. |
| 3 | 3 | CO2; Carbon Dioxide detected, unknown loc. |
| 4 | 4 | Water Alarm; Water Leak detected, unknown loc. |
| 5 | 5 | Heat Alarm; Overheat detected, unknown loc. |
| 6 | 6 | Smoke Alarm; Smoke detected, unknown loc. |
| 9 | 9 | Sensor binary |
110 - Temperature sensor offset settings
Set value is added or subtracted to actual measured value by sensor.Size: 2 bytes
Default: 32536
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | value from 0.1 degrees Celsius to 10.0 degrees Celsius is added to actual measured temperature |
| 1001 | 1100 | value from -0.1 degrees Celsius to -10.0 degrees Celsius is subtracted to actual measured temperature. |
| 32536 | 32536 | offset is 0.0C |
120 - Temperature sensor reporting
If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • default value 5 = 0,5°C change • 0 - reporting disabled • 1 - 127 = 0,1°C - 12,7°C, step is 0,1°CSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting disabled |
| 1 | 127 | = 0,1 degrees Celsius - 12,7 degrees Celsius, step is 0,1 degrees Celsius |
| 5 | 5 | = 0,5 degrees Celsius change |
249 - Enable/Disable Reporting on Set command
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable reporting |
| 1 | 1 | Enable reporting |
250 - Unsecure / Secure Inclusion
A Flush dimmer supports secure and unsecure inclusion. Even if the controller does not support security command classes, a dimmer could be included as unsecure and keep all the functionality.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unsecure Inclusion |
| 1 | 1 | Secure Inclusion |
AUTOMATICALLY ADDING THE DEVICE TO A Z-WAVE NETWORK (AUTO INCLUSION) 1. Enable add/remove mode on your Z-Wave gateway (hub) 2. Connect the device to the power supply (with the temperature sensor already connected – sold separately*). 3. Auto-inclusion will be initiated within 5 seconds of connection to the power supply and the device will automatically enrol in your network MANUALLY ADDING THE DEVICE TO A Z-WAVE NETWORK (MANUAL INCLUSION) 1. Enable add/remove mode on your Z-Wave gateway (hub) 2. Connect the device to the power supply (with the temperature sensor already connected) 3. Toggle the switch connected to the I1 terminal 3 times within 3 seconds OR If the device is powered by 24 V SELV supply, press and hold the S (Service) button between 2 and 6 seconds 4. A new multi-channel device will appear on your dashboard Make sure the device is excluded from your network before connecting the temperature sensor. Switch off the power supply, connect the temperature sensor, and re-include the device to your network. NOTE2: When connecting temperature sensor to module that has already been included, you have to exclude module first. Switch off power supply, connect the sensor and re-include the module.
REMOVAL FROM A ZWAVE NETWORK (Z-WAVE EXCLUSION) 1. Connect the device to the power supply 2. Make sure the device is within direct range of your Z-Wave gateway (hub) or use a hand-held Z-Wave remote to perform exclusion 3. Enable add/remove mode on your Z-Wave gateway (hub) 4. Toggle the switch connected to the I1 terminal 3 times within 3 seconds OR If the device is powered by 24 V SELV supply, press and hold the S (Service) button between 2 and 6 seconds 5. The device will be removed from your network but any custom configuration parameters will not be erased
FACTORY RESET 1. Connect the device to the power supply 2. Within the first minute (60 seconds) the device is connected to the power supply, toggle the switch connected to the I1 terminal 5 times within 3 seconds (5 times change switch state). OR If the device is powered by 24 V SELV supply, press and hold the S (Service) button for at least 6 seconds By resetting the device, all custom parameters previously set on the device will return to their default values, and the owner ID will be deleted. Use this reset procedure only when the main gateway (hub) is missing or otherwise inoperable. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| Acceleration Y-Axis |
| Meter type |
|---|
| Electric Meter Consumption |
