Aeotec
LED Bulb 6: Multi-White
ZWA001-C
Light Dimmer Switch
HW: 1 FW: 1.10
ZM5101
6.71.01
0x0371 (881)
0x0003 (3)
0x0001 (1)
ZC10-18036060
2018-03-15 17:22:26.604949
N/A
Enhanced 232 Slave
Always On Slave
Dimmable from 5% to 100%, tunable from 2700K to 6500K.
Standard form factor and appearance of the light bulb with 800 lm output Tunable white: dimmable from 5% to 100%, tunable from 2700K to 6500K. Possible to be included in groups, scenes, or schedules Suitable for indoor lighting: Corridors, Bedroom, Living Room, etc.

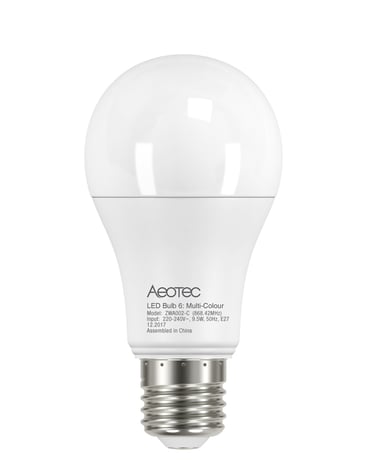

Product Picture
80 - Enable to send notifications to associated devices
Enable to send notifications to associated devices (Group 1) when the state of LED Bulb is changed. 0 = Nothing. 1= Basic CC report.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | LED Bulb will send Basic Report to the associated nodes. |
81 - Adjusting the color temperature in warm white color component.
Adjusting the color temperature in warm white color component. available value: 0x0A8C-1387 Warm White(0x0A8C(2700k) ~ 0x1387 (4999k))Size: 2 bytes
Default: 2700
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2700 | 4999 | Warm White(0x0A8C(2700k) ~ 0x1387 (4999k)) |
82 - Adjusting the color temperature in cold white color component
Adjusting the color temperature in cold white color component. available value:0x1388-0x1964 Cold White (0x1388 (5000k) ~ 0x1964 (6500k))Size: 2 bytes
Default: 6500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5000 | 6500 | Cold White (0x1388 (5000k) ~ 0x1964 (6500k)) |
Add for inclusion: a) Set the Z-Wave network main controller into adding mode. b) Power cycle once for led bulb(OFF->ON).The led bulb will flash twice and send node info frame. c) Wait a moment, the led bulb should be added to the controller.Then the led bulb will flash once when it has been included into the network.
Remove for exclusion: a) Set the Z-Wave network main controller into removing mode. b) Led bulb re-power 3 times (between 0.5-2 seconds each time). c) Wait a moment, the led bulb should be removed from the controller.Then the led bulb will flash once, dim to 5% first, and then increased to 100% after 5 seconds.
Reset the device : a) Please use this procedure only when the network primary controller is missing or otherwise inoperable. b) Led bulb re-power 6 times (between 0.5-2 seconds each time); If the 6th power on, the led bulb flashes twice, which means that the resetting is successful.
| Type | Value(s) |
|---|
