Remotec
Z-Wave Slim Repeater
ZRP-200JP
Repeater
HW: 1 FW: 0.10
ZM5202
6.71.01
0x5254 (21076)
0x1009 (4105)
0x8180 (33152)
ZC10-18026028
2018-02-26 19:45:24.735698
N/A
Routing Slave
Always On Slave
ZRP-200 is a Z-Wave repeater with best RF performance to replicate Z-Wave signals in a network.
ZRP-200 is a Z-Wave repeater with best RF performance to replicate Z-Wave signals in a network. The repeater re-transmits an input Radio Frequency (RF) signal by routing the signal around obstacles and radio dead spots to ensure that the signal is received at its intended destinations. ZRP-200 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller must be used in order to fully utilize the product.

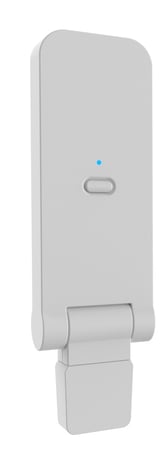

Product Picture
1 Refer to your primary controller to enter into the Inclusion Mode or Exclusion Mode 2 When it is prompted to enter it, please triple click the “PROG” button within 1 second. Blue Indicator flashes TWICE then stay off
1 Refer to your primary controller to enter into the Inclusion Mode or Exclusion Mode 2 When it is prompted to enter it, please triple click the “PROG” button within 1 second. Blue Indicator flashes TWICE then stay off
Press and Hold “PROG” button for 3 seconds on Z-Wave Slim Repeater, the indicator will light up Purple Color. DO NOT Release the “PROG” Button until indicator change back to Blue color and flashes TWICE. Remark : All the Setting and Data will be permanently deleted. *Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
