SE Devices
Wheel Controller
FWC
Wall Controller
HW: 30 FW: 3.00:03.00
ZM5202
6.71.01
0x024F (591)
0x0003 (3)
0x1003 (4099)
ZC10-18046079
2018-02-21 19:27:26.661868
N/A
Enhanced 232 Slave
Always On Slave
Rotary Wheel Wall Controller for controlling a Heating Zone, Central Scenes and up to four separate Light Zones.
The SE Devices Wheel Controller Z-Wave is a modular Wall-Box mountable control wheel, which is controllable over a Z-Wave Home Automation Network. The device can be added to and remote controlled via a Z-Wave Home Automation network. This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. The Wheel Controller unit itself can be combined with a Back Unit hidden inside a wall-box to provide local control possibilities. It can also operate in a Stand-Alone mode, powered via a Cascade connector to another unit (Multifunction Switch or Wheel Controller). There are a variety of Back Units available for the Wheel, which can provide Local control functionality such as Relay Control and Dimming. The Wheel is backed by 4 push buttons, located at the Upper, Lower, Left and Right sides of the wheel. By pushing on these points of the wheel, the various functions of the wheel can be accessed and controlled. The Wheel can be rotated in a clockwise and counter clockwise direction to control the Light Level, adjust temperature settings for the Thermostat and issue Central Scene commands. The current operation is shown in the display at all times. When used as a Thermostat, the display will show information on thermostat operation when the device is Idle.

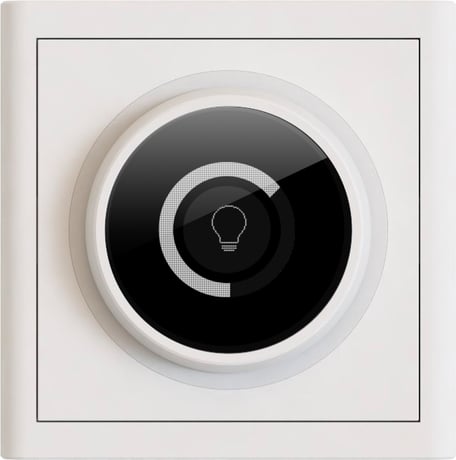

Product Picture
1 - Hardware Combination Identifier
READONLY Byte which uniquely describes the combination of Front and Back Unit in the current installation. The first nibble (4 bits) Identifies the Controlling Unit (Front unit), which is always 0x3 for the Wheel Controller. The combined Byte then yields the following: - 0x30 - 2-Pole 8A Relay - 0x31 - 1-10V Dimmer - 0x32 - 230V MOSFET Dimmer - 0x33 - 1-Pole 16A Relay - 0x3F - No Back Unit connectedSize: 1 byte
Default: 63
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 48 | 63 | Depending on the Hardware combination |
4 - Safety Activate Delay
Safety Mode is activated after the configured number of seconds has elapsed. It will start by turning OFF the Back Unit when activated. A 0 value Disables Safety Mode. The MAX limit is 32767 seconds (9 hours, 6 minutes and 7 seconds). The minimum Actication delay is 60 seconds, and values from 1 to 59 will automatically be translated to a 60 second delay.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | Safety Activate Delay in seconds |
5 - Safety OFF Period
The number of seconds to stay in OFF mode when Safety is activated. The Back unit turns ON when the timer have elapsed. If value is 0, the Back Unit will not turn back ON. The MAX limit is 32767 seconds (9 hours, 6 minutes and 7 seconds). A 60 second minimum period applies.Size: 2 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | Safety OFF Period in seconds |
10 - Dimming Speed
Defines the "fade" time when setting a dim level from a controller. Fade time is defined as the time it takes to dim from MIN level to MAX level. This means an increase of 10% in light level takes 1/10th of the configured time. The value defines the dim time in 1/100'th of a second, which means a value of 200 means the Dimming Speed is 2.0 seconds from MIN to MAX. Max time is 327.67 seconds (around 5.5 minutes). Values below 300 (0.3 seconds) are ignored¸ and values below 1000 (1 second) are discouraged.Size: 1 byte
Default: 200
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 32767 | Dimmer Speed in 1/100th of a Second |
11 - Dimmer Mode
Defines if Dimmer should operate in Leading or Tailing Edge mode. Most Lights work quite OK in the default Leading Edge mode, but this mode also usually cause some noise from the dimmer unit. During installation it is therefore recommended to try TE mode, and use this if the Light operates properly. Tailing Edge mode is known to cause instability in some type of Lights! This configuration does not have an effect on 1-10V Dimmer Back Units! 0 = Leading Edge Mode (LE) 1 = Tailing Edge Mode (TE)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Dimmer Operation Mode |
12 - Maximum Level
The Maximum Light level of the dimmer. Typically there is no visible difference when the dimming level reaches a point in the range 75 - 90, and the installer should set this value to the lowest value where no change is visible. The default value of 90 is usually OK. Range 1-99.Size: 1 byte
Default: 90
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Maximum Dimmer Level |
13 - Minimum Level
The Minimum Light Level of the dimmer. This should be adjusted so the controlled Light is still ON and stable. Remember that LED type lights may work if dimmed down to a low value, but may not start if the light is turned OFF and ON again. Range 1-99.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Minimum Dimmer Level |
14 - UI Modes Enable
Defines which modes should be available in the Display User Interface. The following values can be used: 0 - Automatic based on Back Unit (default) The following values can be added to enable the specified function: 1 - Thermostat mode 2 - Light mode 4 - Central Scene Mode In addition, the number of Light Zones to be controllable via the display can be chosen by adding ONE of these value to the configuration above: 16 - 2 Light Zones enabled 32 - 3 Light Zones enabled 48 - 4 Light Zones enabled NOTE! If Light mode is not enabled, the Zones selection has no effect! Example: To enable 3 Light Zones in addition to Thermostat mode, set the value to (32 + 2 + 1) = 35Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 67 | UI Modes Enabled Flags |
15 - Light Zone Control Mode
Controls if the Light Zones should operate in Switch or Dimmer Mode (only used in Button Modes 0, 1 and 2): 0 – All Light Zones in Dimmer Mode (default) 1 – All Light Zones in Switch Mode (default with Relay back unit) To control Light Zones mode individually, add any of the following values to enable switch mode individually (dimmer is default): 2 – Light Zone 1 Switch Mode 4 – Light Zone 2 Switch Mode 8 – Light Zone 3 Switch Mode 16 – Light Zone 4 Switch Mode Example: A value of 10 (8 + 2) enables switch mode in Light Zone 1 and 3.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Common Mode for all Light Zones |
| 2 | 30 | Switch Mode for individual Light Zones |
16 - Back Unit type
READONLY Provides an Identifier for the connected Back Unit. This configuration is fixed across the SE Devices range, and provides a consistent way to determine local device functionality across the entire range of devices. - 0xFF - No Backunit Connected - 0x00 - 2-Pole 8A Relay - 0x02 - 230V MOSFET Dimmer - 0x04 - 1-10V Dimmer - 0x06 - 1-Pole 16A RelaySize: 1 byte
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -1 | -1 | No Backunit connected |
| 0 | 6 | Depending on Back Unit connected |
17 - Back Unit Role
Configures the Role of the Back Unit, which dictates what Local functionality controls it. Valid configuration values are: 0 - The Thermostat will control the Back Unit (if the back unit is a dimmer, then this value has no effect as Thermostats requires a relay to function) 1 - The Light Control feature (buttons) will control the Back Unit. 2 - Disconnected mode means the Back Unit is not controlled by any local UI or features, and can only be controlled via Z-Wave End-Point 5 (or non-channel encapsulated commands).Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Selected Back Unit Role |
18 - Back Unit Light Zone
Selects which Light Zone the Back Unit should be assigned to. Possible values are: 1 – Light Zone 1 (Button and Z-Wave) (default) 2 – Light Zone 2 (Button and Z-Wave) 3 – Light Zone 3 (Button and Z-Wave) 4 – Light Zone 4 (Button and Z-Wave) This can be used to assign the back unit control to any of the Multiswitch buttons (Light Zone 1 - 4). This does not have any effect however when the BU role is set to Thermostat or Disconnected!Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 4 | Back Unit Light Zone |
32 - Thermostat Set Point Max
Maximum Heat Set Point the Thermostat is allowed to be set to. If the Thermostat is used for Floor Heating, please make sure that this value is configured to the same value as (or lower than) the Max Floor Temperature. Given in 1/10 of a degree Celcius, which means a value of 300 means 30 degrees C. Range: 0 – 500 (0-50 degrees).Size: 2 bytes
Default: 270
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | Safety ON Period in seconds |
| 0 | 500 | Set Point Max in 1/10th of a degree Celcius |
34 - Thermostat Set Point Min
Minimum Heat Set Point the Thermostat is allowed to be set to. Given in 1/10 of a degree Celcius, which means a value of 50 means 5 degrees C. Range: 0 – 500 (0-50 degrees).Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 500 | Set Point Min in 1/10th of a degree Celcius |
36 - Thermostat Control Resend Interval
Defines the interval between each time the Thermostat will repeat its last control command. This is used in combination with the Relay Safety configuration when controlling external Relays. If the Thermostat should fail, it would then stop sending control commands which in turn means the Relay will turn itself OFF after the safety mode delay has expired. This insures that heating will not be left ON indefinitely in failure situations. Range: 60 – 32767 secondsSize: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | Resend Interval in seconds |
37 - Thermostat Minimum On/Off Interval
This configuration defines the minimum interval the controlled Thermostat Relays will be ON and OFF. This is a feature intended to avoid turning control relays ON and OFF too frequently, which should insure a better lifetime of controlled relays. The default value is 5 minutes, which is OK for most electrical heating control. If used to control Water based heating, the value MUST be adjusted in accordance with the manufacturers specifications. Range: 60 – 32767 secondsSize: 2 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 60 | 32767 | Minimum On/Off interval in seconds |
38 - Thermostat Floor Temp Max
Max floor temperature if a local floor sensor is connected. If the Floor Sensor reads a temperature Higher than the configured value, it will immediately turn the relay (or any associated relays) OFF. The relay will stay off until the temperature sinks below this value, and the Thermostat issues it's next control command. Disabled if zero (0) value, or if no floor sensor is connected. The value is given as 1/10th of a degree Celcius. Range: 0 – 500 (0-50 degrees). NOTE! MAX 27 degrees is recommended for Wooden Floors! NOTE! This function is always active as long as a Floor Sensor is connected, regardless of the sensor configuration described below.Size: 2 bytes
Default: 270
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 500 | Floor Temp Max in 1/10th of a degree Celcius |
40 - Temperature Sensor Select
Defines which temperature Sensor should be used for Heating Control. The default value is Both (3), which should work well in most scenarios (even when only a Floor or Room sensor is present). If both a Room and Floor sensor is used, the Thermostat will always control heating based on the lowest temperature reading of the two, to insure a comfortable floor temperature even if the room is already warm enough. If this is not wanted, the Thermostat should be configured to use the Room sensor Only. NOTE! The Floor Max Temperature feature will ALWAYS be active as long as a floor sensor is available, even if the Thermostat is configured to only use the Room Sensor. 1 - Local Room - Use temperature from Locally connected Room sensor ONLY. Max Floor Temp protection is still active as long as a floor sensor is available. 2 - Local Floor - Use temperature from Locally connected Floor sensor ONLY 3 - Both (auto) - Use temperature from Locally connected Floor AND Room sensor if available (Default).Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | Temperature Sensor Select |
44 - Cold Start Minimum Level
Sets the minimum level the Dimmer should go to when the light is switched ON. This is typically used for LED lamps which does not switch ON correctly when the dimming level is at the Minimum. See detailed description below.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Cold Start Minimum Level |
64 - Temperature Report Inteval
Defines the Periodic Report interval for temperature readings. This can be configured to a minimum of 60 seconds and maximum of (32767 seconds. A 0 value disables the Interval based Periodic reporting, and any value below 60 results in a 60 second interval.Size: 2 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | Report Interval in seconds |
66 - Temperature Report Threshold
Defines a temperature change threshold where a temperature report is sent regardless of the Report Interval. This also works if the report interval is disabled. The value is given in 1/10 of a degree celsius, and can be in the range 1-127. A zero value disables the Threshold.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Report Threshold in 1/10th of a degree Celcius |
67 - Thermostat On∕Off Interval Override Threshold
Defines a temperature threshold at which the configured On/Off interval is overridden and the Heating relay state will change regardless. The value is given in 1/10th of a degree, supporting a max threshold of 12.7 degrees celcius. A Zero (0) value disables this feature (the default)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Temperature Threshold in 1/10th of a degree Celcius |
240 - Floor Sensor Temperature Offset
Defines an offset to the Floor Temperature, given as a signed integer at 1/10 of a degree celcius. This provides an offset range of –12.8 to +12.7 degrees celcius (-128 to 127).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | Temperature Offset in 1/10th of a degree Celcius |
241 - Room Sensor Temperature Offset
Defines an offset to the Room Temperature, given as a signed integer at 1/10 of a degree celcius. This provides an offset range of –12.8 to +12.7 degrees celcius (-128 to 127).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 4 | Selected Back Unit Light Zone |
| -128 | 127 | Temperature Offset in 1/10th of a degree Celcius |
To add the device to a Z-Wave network, the Z-Wave Controller must first be set into Add mode. Once the Controller is listening for devices to add, Push and Hold the lower part of the Wheel Controller for 5 seconds. The device will indicate that it sends information to the Controller by showing a Radio Communication Icon in the display. The Controller should now discover the device and add it to the Z-Wave network. Once added, the device should respond commands over the Z-Wave network.
Removal is done by setting the Controller in Remove Mode (instead of Add mode), and then follow the exact same procedure on the device itself as when adding the device.
Follow this procedure to Factory Reset the Wheel Controller. This will restore all configuration parameters back to the default settings, and remove the device from the Z-Wave network. WARNING! Executing a Factory Reset on a device may make it stop working as wanted, and will disable remote control of the device. The device will have to be re-added to the Z-Wave network and reconfigured afterwards, to regain the previous operation of the device. Please DO NOT execute this procedure unless it is absolutely necessary. Step 1: Push and Hold the DOWN and LEFT wheel buttons at the same time, and keep holding them for approximately 15 seconds. It is recommended to use two fingers to insure that both buttons are pushed completely down. Step 2: Release the buttons when the text “RESET” appears in the display, after approximately 15 seconds. Step 3: Then Push and Hold UP (marked OK) for approximately 1 second to CONFIRM the Factory Reset. Pushing any other direction button will Cancel the Factory Reset, and restore normal operation. Also, if the RESET is not confirmed within 5 seconds, the device will resume normal operation. Step 4: When you confirm the Reset by pushing and holding UP, the RESET text will start blinking. Then the device will resume operation, but with all configuration Reset to their defaults. Also, if the device was added to a Z-Wave network, the device will no longer be available for Z-Wave control (only Local control will work).
The Wheel Controller is capable of controlling local loads via a modular Back Unit. The back unit can be mounted and connected to mains electricity inside a Electrical Wall box. Two types of Relay and Dimmer Back Units are currently available. The maximum controllable local load are specified in each Back Unit product sheets.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
