Standalone 1-10V Dimmer
AD1-10V
Light Dimmer Switch
HW: 30 FW: 3.00:03.00
ZM5202
6.71.01
0x024F (591)
0x0003 (3)
0x1011 (4113)
ZC10-18046092
2018-02-21 19:38:28.925089
N/A
Enhanced 232 Slave
Always On Slave
Standalone 1-10V Dimmer (1000W) for concealed in-wall monunting
The Standalone 1-10V Dimmer is a control voltage dimmer for concealed in-wall mounting. The device is exclusively Z-Wave controllable, which can handle 1-10V dimmable loads up to 1000W. All dimmer properties are configurable, making it possible to accurately customize the dimmer to the properties of the controlled Light Fixtures. The device supports power measurement, reporting both instant and accumulated power consumption over time.

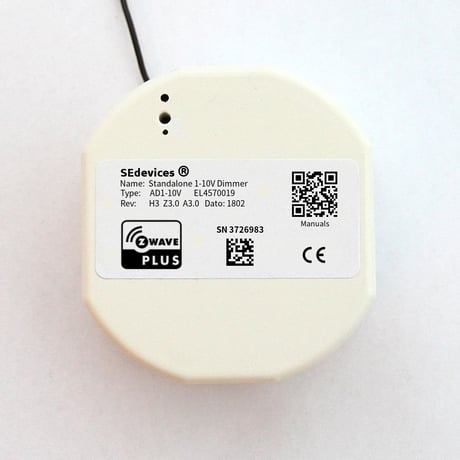

Product Picture
1 - Hardware Combination Identifier
READ-ONLY: Identifier which uniquely identifies the SE Devices hardware combination. Always return value 18 (0x12) for this device. See manuals for information regarding other SEdevices units.Size: 1 byte
Default: 18
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 18 | 18 | Hardware Combination Identifier |
10 - Dimming Speed
Defines the "fade" time when setting a dim level from a controller. Fade time is defined as the time it takes to dim from MIN level to MAX level, which means an increase of 10% in light level takes 1/10th of the configured time. The value defines the dim time in 1/100'th of a second, which means a value of 200 means the Dimming Speed is 2.0 seconds from MIN to MAX. Max time is 327.67 seconds (almost 5 and a half minute). Values below 30 (0.3 seconds) are ignored¸ and values below 100 (1 second) are discouraged.Size: 2 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 32767 | Dimming Speed from MIN to MAX |
11 - Dimmer Mode
Has no effect on the 1-10V dimmer. The configuration is reserved for possible future functionality, and to align it with the AMD unit.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Not Applicable |
12 - Maximum Level
The Maximum Light level of the dimmer. Typically there is no visible difference when the dimming level reaches a point in the range 75 - 90, and the installer should set this value to the lowest value where no change is visible. The default value of 90 is usually OK.Size: 1 byte
Default: 90
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Maximum Dimmer Level |
13 - Minimum Level
The Minimum Light Level of the dimmer. This should be adjusted so the controlled Light is still ON and stable. Remember that LED type lights may work if dimmed down to a low value, but may not start if the light is turned OFF and ON again.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Minimum Dimmer Level |
16 - Back Unit Type
READ-ONLY: Identifies the local functionality of devices in the SE Devices product range. Always return value 2 for Mosfet Dimmer functionality.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2 | Local Functionality Identifier |
44 - Cold Start Minimum Level
Has no effect on the 1-10V dimmer. The configuration is reserved for possible future functionality, and to align it with the AMD unit.Size: 1 byte
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Not Applicable |
To add the device to a Z-Wave network, the Z-Wave Controller must first be set into Add (Learn) mode. Then use a paperclip or a small pointy tool to push and hold the button in the button hole for approximately a second. The device LED will blink twice to indicate that it sends information to the Controller.
To remove the device from a Z-Wave network, the Z-Wave Controller must first be set into Remove mode. Then use a paperclip or a small pointy tool to push and hold the button in the button hole for approximately a second. The device LED will blink twice to indicate that it sends information to the Controller.
WARNING! Executing a Factory Reset on a device may make it stop working as wanted, and will disable remote control of the device. The device will have to be re-added to the Z-Wave network and reconfigured afterwards, to regain the previous operation of the device. Please DO NOT execute this procedure unless it is absolutely necessary. Push and Hold the Add/Remove button for about 15 seconds – until the LED indicator turns OFF. Then release the button. The device is now Factory Reset, and removed from the Z-Wave network. The button is located about 10 mm down in the middle of the three holes on the front. A thin tool (a very small screwdriver, a toothpick, a paper clip or similar) is needed to access the button.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Power |
| Voltage |
| Current |
| Meter type |
|---|
| Electric Meter Consumption |
