Dooya
Curtain motor
DT82TV/F-1.2/14
Window Covering - Pos/End Aware
HW: 144 FW: 1.14:01.04
ZM5202
6.71.01
0x030A (778)
0x0103 (259)
0x0090 (144)
ZC10-18046083
2018-04-16 17:17:57.540021
N/A
Enhanced 232 Slave
Always On Slave
DOOYA Z-Wave curtain motor is designed with exceeding commercial standards, with its exceptional quietness and user- friendly set up.
DOOYA Z-Wave curtain motor is designed with exceeding commercial standards, with its exceptional quietness and user-friendly setup. Multiple control options enable the users to operate the curtain by remote, APP, or with hands. Pull to move function would be especially helpful and convenient to users who are not yet familiar with motorization. Durability in use guarantee a 10,000 times use. Additionally, the motor is more than what were mentioned above. 1. Quick set limits: the motor would set its limit positions automatically with a full ride opening and closing on the track. 2. Soft start & soft stop: A smooth running with a soft start and soft stop provide a premium visual effect. 3. Pull to move: Just do what you always did on a normal curtain, but you do not have to pull the fabric all the way to the end. Just one touch of pulling on the fabric, the motor will start running until it reaches its end. 4. If the power was gone, you can still operate the curtain as a normal curtain. When the power is back, all the settings are still there. 5. RF compatibility: Dooya Z-Wave curtain motor is also compatible with the whole range of Dooya RF remotes, various choices and a different combination would satisfy all kinds of different needs.

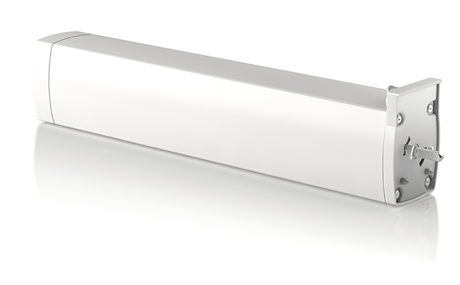

Product Picture
View configuration parameters (10)
1 - Set the motor rotation direction
Set the direction: This parameter can be used to set the motor rotation direction, the motor direction is forward (Configuration Value set to 0) or the opposite direction(Configuration Value set to 1), The default value is 0.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | the motor direction is forward |
| 1 | 1 | the motor direction is opposite |
2 - Set to start holding hands
Set to start holding hands:This parameter can be used to set the motor open hand start function(Configuration Value set to 0) or closd(Configuration Value set to 1),The default value is 0.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | open hand start function |
| 1 | 1 | close hand start function |
3 - Weak electric switch mode
Configure weak electric switch mode:This parameter can be used to set the need of weak electric switch mode. Provide 4 kinds of weak electric switch mode is optional,respectively:Double-button reboundable switch(Configuration Value set to 1),Double-button not reboundable switch(Configuration Value set to 2),DC246 switch(Configuration Value set to 3),Single-button cyclic switch mode(Configuration Value set to 4),The default value is 1.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Double-button reboundable switch |
| 2 | 2 | Double-button not reboundable switch |
| 3 | 3 | DC246 switch |
| 4 | 4 | Single-button cyclic switch mode |
4 - Strong electric switch mode
Configure strong electric switch mode:This parameter can be used to set the need of strong electric switch mode. Provide 3 kinds of weak electric switch mode is optional,respectively:Double-button not reboundable(Configuration Value set to 0) ,Hotel mode(Configuration Value set to 1),Double-button reboundable mode(Configuration Value set to 2),The default value is 0.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Double-button not reboundable |
| 1 | 1 | Hotel mode |
| 2 | 2 | Double-button reboundable mode |
5 - Limit position status
Read whether the total limit is set:This parameter can be used to read the motor's total limit is already set.Not set the limit(Read into the Configuration Value is 0);Already set the limit(Read into the Configuration Value is 1)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Limit position does not set |
| 1 | 1 | Limit position has been set |
6 - Device type
Read the device type:This parameter can be used to read the type of the motor.Motor types are divided into curtain motor(Read into the Configuration Value is 0x01),shutter(Read into the Configuration Value is 0x11),Venetian blinds (Read into the Configuration Value is 0x12)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | curtain |
| 17 | 17 | shutter |
| 18 | 18 | venetian |
7 - Power supply type
Read the motor power supply type:This parameter can be used to read the motor power supply type.The power of motor is classified into:Mains power supply(Read into the Configuration Value is 0),battery power(Read into the Configuration Value is 1).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Main power (AC power) |
| 1 | 1 | Bettery |
8 - Manually set / cancel open borders
Manually set / cancel open borders:Manually set the open boundary of the curtain(Configuration Value set to 1), cancel manually open the border of the curtain(Configuration Value set to 0)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Cancel manually open the border of the curtain |
| 1 | 1 | Manually set the open boundary of the curtain |
9 - Manually set / cancel close borders
Manually set /cancel close borders: Manually set the closed boundary of the curtain(Configuration Value set to 1), cancel manually close the border of the curtain(Configuration Value set to 0).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Cancel manually close the border of the curtain |
| 1 | 1 | Manually set the closed boundary of the curtain |
10 - Delete the limit position
Delete the limit: This command can delete the limit that has been set for the motor.Size: 1 byte
Default: 127
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 127 | 127 | Delete the limit position |
Operating instructions (3)
Quick press the outside set button in 1.5 seconds to trigger product inclusion
Quick press the outside set button in 1.5 seconds to trigger product exclusion
Long press the outside set button for 15 seconds. (Please use this procedure only when the network primary controller is missing or otherwise inoperable.)
Document (1)
| Type | Name | |
|---|---|---|
| Product or Owner's Manual | eDT82TV-F A-00.pdf |
Feature (1)
| Type | Value(s) |
|---|
