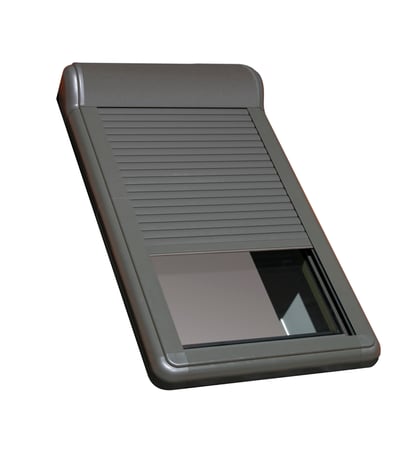

FAKRO ARZ Z-Wave external roller shutters have been adapted for wireless cooperation with the Z-Wave system. The shutter is designed for FAKRO roof windows and its installation is possible at any time after roof window installation. It is also possible to use the shutter for roof windows of other manufactures. Installed on the outside of the window, the roller shutter constitutes an optimum solution against overheating and provides additional protection of the window e.g. against falling tree branches etc. The roller shutter enables complete blackout and good sound reduction. It is also good protection from glazing excessive cooling during the winter. The roller shutter also means increased security. It has built-in overload protection and can be controlled by using standard Z-Wave controller. The AMZ Z-Wave roller shutter has three extremes: - Maximum extension (encoder maximum position) - Completely rolled up (encoder minimum position) - Current limiting protecting awning blind against damage and user against accidental injury resulting from the contact with moving elements of awning blind. There are three association groups in roller shutter ARZ Z-Wave: 1.Life Line – group for position reporting roller shutter after each a stoppage and alarm reporting (overcurrent, damage encoders). This group can be a maximum 1 device. 2.Basic Repeat – group used to transfer the received basic commands to the devices included in this group. This group can be a maximum 5 devices. 3.Multilevel Repeat – group used to transfer the received multilevel commands to the devices included in this group. This group can be a maximum 5 devices. Technical Parameters: Power voltage: 15V DC Rated current: 1,4 A Current limit: YES Speed: 23 r.p.m Temperature of usage: (-10 °C) do (65°C) Supplying cable: 2 x 0,75mm2
