Honeywell Home (Resideo)
T6 Pro Z-Wave Programmable Thermostat
TH6320ZW2003
Thermostat - HVAC
HW: 1 FW: 1.03:01.04
ZM5202
6.71.01
0x0039 (57)
0x0011 (17)
0x0008 (8)
ZC10-18046094
2018-04-13 18:57:36.016638
N/A
Routing Slave
Always On Slave
Yes
Z-Wave Plus Programmable thermostat 3H/2C Heat pump or 2H/2C Conventional systems 3 x AA Battery or 24VAC powered Large Easy-To-Read Touchscreen Displays and report ambient temperature and % Relative indoor humidity
The Honeywell T6 Pro Z-Wave Programmable Thermostat is a Z-Wave Plus certified, universal thermostat capable to control up to three heat and two cool stages of heat pump, (incl. dual fuel heat pump systems) and up to two heat and two cool stages of conventional system (3H/2C HP, 2H/2C Conv.) - 3 x AA battery or 24VAC powered - Easy wiring, easy configuration - Flexible local thermostat scheduling options - Attractive look, large Easy-To-Read touchscreen - Displays and reports ambient temperature and % Relative Indoor Humidity - Displays and reports HVAC system status, battery power status, Z-Wave signal status - Large amount of supported Z-Wave command classes - Remotely configurable via Z-Wave configuration command class - Advanced HVAC configuration parameters

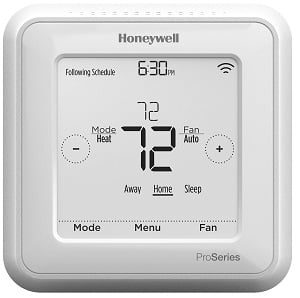

Product Picture
1 - Schedule type
Size: 1 byte
Default: 2
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No schedule/Occupancy based schedule |
| 1 | 0 | Every day the same |
| 2 | 0 | 5-2 Schedule |
| 3 | 0 | 5-1-1 Schedule |
| 4 | 0 | Every day individual |
2 - Temperature Scale
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Fahrenheit |
| 1 | 0 | Celsius |
3 - Outdoor Temperature
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No |
| 1 | 0 | Wired |
4 - Equipment Type
Size: 1 byte
Default: 2
Minimum: 0
Maximum: 9
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | None |
| 1 | 0 | Standard Gas |
| 2 | 0 | High Efficiency Gas |
| 3 | 0 | Oil |
| 4 | 0 | Electric |
| 5 | 0 | Fan Coil |
| 6 | 0 | Air to Air Heat pump |
| 7 | 0 | Geothermal Heat Pump |
| 8 | 0 | Hot Water |
| 9 | 0 | Steam |
5 - Reversing Valve
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | O/B on Cool |
| 1 | 0 | O/B on Heat |
6 - Cool Stages
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Stages |
7 - Heat Stages; AUX/E stages
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Stages |
8 - Aux/E Control
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Both Aux and E |
| 1 | 0 | Either Aux/E |
9 - Aux Heat Type
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Electric |
| 1 | 0 | Gas/Oil |
10 - EM Heat Type
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Electric |
| 1 | 0 | Gas/Oil |
11 - Fossil Kit Control
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Thermostat |
| 1 | 0 | External |
12 - Auto Changeover
ADVANCED PARAMETER SHOULD ONLY BE CHANGED FROM ITS DEFAULT VALUE BY A QUALIFIED HVAC PROFESSIONALSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
13 - Auto Differential
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | degrees of Fahrenheit |
14 - High Cool Stage Finish
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No |
| 1 | 0 | Yes |
15 - High Heat Stage Finish
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No |
| 1 | 0 | Yes |
16 - Aux Heat Droop
0 = Comfort (1 is not accepted) Integer from 2 to 15 degrees of Fahrenheit from setpointSize: 1 byte
Default: 0
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 15 | degrees of Fahrenheit from setpoint |
17 - Up Stage Timer Aux Heat
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | 30 minutes |
| 2 | 0 | 45 minutes |
| 3 | 0 | 60 minutes |
| 4 | 0 | 75 minutes |
| 5 | 0 | 90 minutes |
| 6 | 0 | 2 hours |
| 7 | 0 | 3 hours |
| 8 | 0 | 4 hours |
| 9 | 0 | 5 hours |
| 10 | 0 | 6 hours |
| 11 | 0 | 8 hours |
| 12 | 0 | 10 hours |
| 13 | 0 | 12 hours |
| 14 | 0 | 14 hours |
| 15 | 0 | 16 hours |
18 - Balance Point (Compressor Lockout)
0 = Off integer from 5 to 65 degrees Fahrenheit in only 5 degrees increments. Other values not accepted.Size: 1 byte
Default: 65
Minimum: 0
Maximum: 65
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Balance Point Off |
| 5 | 5 | Balance Point 5 degrees Fahrenheit |
| 10 | 10 | Balance Point 10 degrees Fahrenheit |
| 15 | 15 | Balance Point 15 degrees Fahrenheit |
| 20 | 20 | Balance Point 20 degrees Fahrenheit |
| 25 | 25 | Balance Point 25 degrees Fahrenheit |
| 30 | 30 | Balance Point 30 degrees Fahrenheit |
| 35 | 35 | Balance Point 35 degrees Fahrenheit |
| 40 | 40 | Balance Point 40 degrees Fahrenheit |
| 45 | 45 | Balance Point 45 degrees Fahrenheit |
| 50 | 50 | Balance Point 50 degrees Fahrenheit |
| 55 | 55 | Balance Point 55 degrees Fahrenheit |
| 60 | 60 | Balance Point 60 degrees Fahrenheit |
| 65 | 65 | Balance Point 65 degrees Fahrenheit |
19 - Aux Heat Lock Out (Aux Heat Outdoor Lockout)
0 = Off integer from 5 to 65 degrees Fahrenheit in only 5 degrees increments. Other values not accepted.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 65
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Aux Heat Lockout Off |
| 5 | 5 | Aux Heat Lockout 5 degrees Fahrenheit |
| 10 | 10 | Aux Heat Lockout 10 degrees Fahrenheit |
| 15 | 15 | Aux Heat Lockout 15 degrees Fahrenheit |
| 20 | 20 | Aux Heat Lockout 20 degrees Fahrenheit |
| 25 | 25 | Aux Heat Lockout 25 degrees Fahrenheit |
| 30 | 30 | Aux Heat Lockout 30 degrees Fahrenheit |
| 35 | 35 | Aux Heat Lockout 35 degrees Fahrenheit |
| 40 | 40 | Aux Heat Lockout 40 degrees Fahrenheit |
| 45 | 45 | Aux Heat Lockout 45 degrees Fahrenheit |
| 50 | 50 | Aux Heat Lockout 50 degrees Fahrenheit |
| 55 | 55 | Aux Heat Lockout 55 degrees Fahrenheit |
| 60 | 60 | Aux Heat Lockout 60 degrees Fahrenheit |
| 65 | 65 | Aux Heat Lockout 65 degrees Fahrenheit |
20 - Cool 1 CPH (Cooling cycle rate stage 1)
Size: 1 byte
Default: 3
Minimum: 1
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Cycle rates per hour |
21 - Cool 2 CPH (Cooling cycle rate stage 2)
Size: 1 byte
Default: 3
Minimum: 1
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Cycle rates per hour |
22 - Heat 1 CPH (Heating cycle rate stage 1)
Size: 1 byte
Default: 3
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 12 | Cycle rates per hour |
23 - Heat 2 CPH (Heating cycle rate stage 2)
Size: 1 byte
Default: 3
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 12 | Cycle rates per hour |
24 - Aux Heat CPH (Heating cycle rate Auxiliary Heat)
Size: 1 byte
Default: 9
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 12 | Cycle rates per hour |
25 - EM Heat CPH (Heating cycle rate Emergency Heat)
Size: 1 byte
Default: 9
Minimum: 1
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 12 | Cycle rates per hour |
26 - Compressor Protection
0 = Off Integer from 1-5 minutesSize: 1 byte
Default: 5
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Compressor Protection Off |
| 1 | 5 | Compressor Protection Minutes |
27 - Adaptive Intelligent Recovery
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
28 - Minimum Cool Temperature
Size: 1 byte
Default: 50
Minimum: 50
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 50 | 99 | Degrees Fahrenheit |
29 - Maximum Heat Temperature
Size: 1 byte
Default: 90
Minimum: 40
Maximum: 90
Possible values
| From | To | Desription |
|---|---|---|
| 40 | 90 | Degrees Fahrenheit |
30 - Air Filters
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Air Filters |
31 - Air Filter 1 Reminder
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 19
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | 10 Run time Days |
| 2 | 0 | 20 Run time Days |
| 3 | 0 | 30 Run time Days |
| 4 | 0 | 45 Run time Days |
| 5 | 0 | 60 Run time Days |
| 6 | 0 | 90 Run time Days |
| 7 | 0 | 120 Run time Days |
| 8 | 0 | 150 Run time Days |
| 9 | 0 | 30 Days |
| 10 | 0 | 45 Days |
| 11 | 0 | 60 Days |
| 12 | 0 | 75 Days |
| 13 | 0 | 3 Months |
| 14 | 0 | 4 Months |
| 15 | 0 | 5 Months |
| 16 | 0 | 6 Months |
| 17 | 0 | 9 Months |
| 18 | 0 | 12 Months |
| 19 | 0 | 15 Months |
32 - Air Filter 2 Reminder
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 19
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | 10 Run time Days |
| 2 | 0 | 20 Run time Days |
| 3 | 0 | 30 Run time Days |
| 4 | 0 | 45 Run time Days |
| 5 | 0 | 60 Run time Days |
| 6 | 0 | 90 Run time Days |
| 7 | 0 | 120 Run time Days |
| 8 | 0 | 150 Run time Days |
| 9 | 0 | 30 Days |
| 10 | 0 | 45 Days |
| 11 | 0 | 60 Days |
| 12 | 0 | 75 Days |
| 13 | 0 | 3 Months |
| 14 | 0 | 4 Months |
| 15 | 0 | 5 Months |
| 16 | 0 | 6 Months |
| 17 | 0 | 9 Months |
| 18 | 0 | 12 Months |
| 19 | 0 | 15 Months |
33 - Humidification Pad Reminder
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | 6 Calendar Months |
| 2 | 0 | 12 Calendar Months |
34 - Dehumidification Filter Reminder
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 12 | Calendar Months |
35 - Ventilation Filter Reminder
integer from 0 to 12 months. 0 = Off 3 = 3 Months 6 = 6 Months 9 = 9 Months 12 = 12 Months Other values not accepted.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 12
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No Ventilation Filter Reminder |
| 3 | 3 | Reminder in 3 Months |
| 6 | 6 | Reminder in 6 Months |
| 9 | 9 | Reminder in 9 Months |
| 12 | 12 | Reminder in 12 Months |
36 - UV Devices
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | UV Devices |
37 - UV Bulb 1 Reminder
integer from 0 to 24 months. 0 = Off 6 = 6 Months 12 = 12 Months 24 = 24 Months Other values not accepted.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 24
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | UV Bulb 1 Reminder Off |
| 6 | 6 | Reminder in 6 Months |
| 12 | 12 | Reminder in 12 Months |
| 24 | 24 | Reminder in 24 Months |
38 - UV Bulb 2 Reminder
integer from 0 to 24 months. 0 = Off 6 = 6 Months 12 = 12 Months 24 = 24 Months Other values not accepted.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 24
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | UV Bulb 2 Reminder Off |
| 6 | 6 | Reminder in 6 Months |
| 12 | 12 | Reminder in 12 Months |
| 24 | 24 | Reminder in 24 Months |
39 - Idle Brightness
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | Brightness level |
40 - Clock Format
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 12 hour |
| 1 | 0 | 24 hour |
41 - Daylight Saving
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 0 | On |
42 - Temperature Offset
-3 = -3 deg Fahrenheit -2 = -2 deg Fahrenheit -1 = -1 deg Fahrenheit 0 = Off 1 = +1 deg Fahrenheit 2 = +2 deg Fahrenheit 3 = +3 deg FahrenheitSize: 1 byte
Default: 0
Minimum: -3
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| -3 | 3 | degrees Fahrenheit Offset |
To include the thermostat in to Z-Wave network, go to thermostat MENU/ Z-Wave SETUP. • Touch Select. You will be asked to set your primary controller to INCLUDE MODE. Please refer to the user manual of your Z-Wave controller. • After inclusion procedure has been initiated on your Z-Wave controller, touch Select on the thermostat. • If the inclusion procedure is successful, ""INCLUDED"", the node ID, and the Z-Wave connected status icon appear on the screen. If the procedure fails, “FAILED TO INCLUDE” appears on the screen. • Your controller will indicate whether the thermostat was successfully added to its network. Please refer to the user manual of your Z-Wave controller.
To exclude the thermostat from Z-Wave network, go to thermostat MENU/ Z-Wave SETUP. • Touch Select. You will be asked to set your primary controller to EXCLUDE MODE. Please refer to the user manual of your Z-Wave controller. • After exclusion procedure has been initiated on your Z-Wave controller, touch Select on the thermostat. • If the exclusion procedure is successful, ""EXCLUDED"", and the Z-Wave excluded status icon appear on the screen. If the procedure fails, “FAILED TO EXCLUDE” appears on the screen. • Your controller will indicate whether the thermostat was successfully excluded from its network. Please refer to the user manual of your Z-Wave controller.
To reset the thermostat to factory default setting, go to Installer setup – advanced menu. To access the advanced menu, press and hold the thermostat Menu button for 5 seconds. Touch < or > to go to RESET menu. Press Select. Touch < or > to go to FACTORY. Press Select. Touch Yes to reset the thermostat to factory default settings.. Please use the reset procedure only when the primary controller is missing or inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| Humidity |
