Philio
Single Function Magnetic Sensor
PSM08-3
Notification Sensor
HW: 1 FW: 1.02
SD3502
6.61.00
0x013C (316)
0x0002 (2)
0x0036 (54)
ZC10-18046096
2018-04-27 03:49:10.828433
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The door/window sensor PSM08 has door/window sensor function.
The door/window sensor PSM08 has door/window sensor function,based on Z-Wave™ technology.

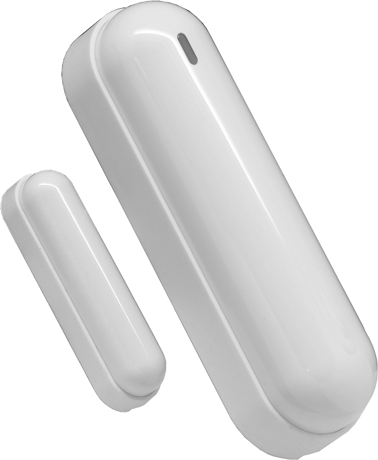

Product Picture
There is a button on PSM08. 1. Have Z-Wave™ Controller entered inclusion mode. 2. Pressing button once to enter the inclusion mode. 3. After add successful, the device will wake to receive the setting command from Z-Wave™ Controller about 20 seconds.
There is a button on PSM08. 1. Have Z-Wave™ Controller entered exclusion mode. 2. Pressing button once to enter the exclusion mode.
There is a button on PSM08. Press the button once, the device will awake 10 seconds.
There is a button on PSM08. 1. Pressing button for about 5 seconds. 2. IDs are excluded and all settings will reset to factory default. Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
