ECO LIFE ENGINEERING
In Wall Dimmer
PAD07-3E
Light Dimmer Switch
HW: 1 FW: 1.01
SD3502
6.51.09
0x037C (892)
0x0005 (5)
0x0063 (99)
ZC10-18056108
2018-05-09 17:25:02.284843
N/A
Enhanced 232 Slave
Always On Slave
PAD07 is a security enabled wireless dimmer, based on Z-Wave Plus technology. You can On/Off the light by pressing the button briefly, or a long pressing to control the brightness of dimmable light bulb.
PAD07 is a security enabled wireless dimmer, based on Z-Wave Plus technology. Z-Wave PlusTM enabled devices displaying the Z-Wave PlusTM logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-WaveTM enabled networks. You can On/Off the light by pressing the button briefly, or a long pressing to control the brightness of dimmable light bulb. This dimmer is a transceiver which is a security enabled device which based on Z-Wave Plus technology, and it is fully compatible with any Z-WaveTM enabled network. Since PAD07 supports Security Command Class, it can learn with a Secured enabled controller to fully utilize the device. Its functionality and supported command classes is identical when included as a secure and non-secure device. Adding to Z-WaveTM Network In the front casing, there is an on/off button (also an include button) with LED indicator below which is used to dim on and off or carries out inclusion, exclusion, reset or association. When first power applied, its LED flashes on and off alternately and repeatedly at 0.5 second intervals. It implies that it has not been assigned a node ID and start auto inclusion. Auto Inclusion The function of auto inclusion will be executed as long as the dimmer does not have Node ID and just connect the switch to main power. Note: Auto inclusion timeout is 2 minute during which the node information of explorer frame will be emitted once every several seconds. Unlike “inclusion” function as shown in the table below, the execution of auto inclusion is free from pressing the On/Off button on the dimmer.

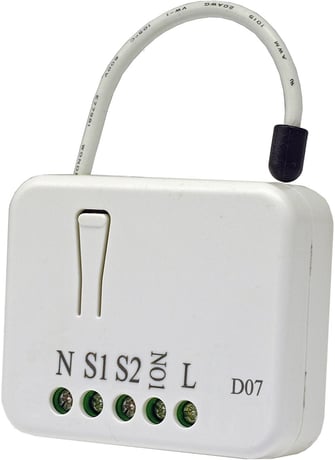

Product Picture
1 - Dimmer Level Report mode
Whenever dimmer on/off state changes, it will send MULTILEVEL_SWITCH_REPORT to the nodes of group1. The default setting is Enable the function.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 : Disable |
| 1 | 1 | 1 : Enable |
2 - LED indication mode
1. Show dimmer State：When dimmer is on, LED is on. When dimmer is off, LED is off. The default setting is Show dimmer State. 2. Show Night mode：When dimmer is on, LED is off. When dimmer is off, LED is on. 3. One flash mode : When dimmer on/off state changes, LED will light on one second and then off.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | 1 : Show dimmer state |
| 2 | 2 | 2 : Show night mode |
| 3 | 3 | 3 : One flash mode |
3 - External switch type
1. One switch mode：Only S1 can dim up the light bulb to brightest level, then dim down to darkest level, and so on… 2. Two switch mode：S1 and S2 can dim up the light bulb to brightest level, then dim down to darkest level, and so on… 3. Up/Down switch mode：S1 can only dim up the light bulb to brightest level, and S2 can only dim down to Off.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | 1 : One switch mode |
| 2 | 2 | 2 : Two switch mode |
| 3 | 3 | 3: Up/Down switch mode |
4 - Restore dimmer state
Whenever the AC power return from lost, PAD02 will restore the switch state which could be Dimmer off、Last dimmer state、Dimmer on. The default setting is Last dimmer state.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 : Dimmer off |
| 1 | 1 | 1 : Last dimmer state |
| 2 | 2 | 2 : Dimmer on |
1. Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing Include button of PAD07 three times within 2 seconds will enter inclusion mode.
1. Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing Include button of PAD07 three times within 2 seconds will enter exclusion mode. 3. Node ID has been excluded.
1. Pressing Include button of PAD07 three times within 2 seconds will enter inclusion mode. 2. Within 1 second, press Include button of PAD07 again for 5 seconds. 3. IDs are excluded. *Please use this procedure only when the network primary controller is missing or otherwise inoperable.
