Good Way Technology, Co., Ltd
In-wall switch
TD13010
Power Strip
HW: 1 FW: 2.05
ZM5101
6.81.00
0x0068 (104)
0x0003 (3)
0x0015 (21)
ZC10-18066136
2018-06-05 21:28:46.599292
N/A
Enhanced 232 Slave
Always On Slave
This In-wall Power Monitor Switch is a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network.
This In-wall Power Monitor Switch is a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. Mini-sized design makes it easy to place the In-wall Power Monitor Switch into the wall box and fit in the house decoration.

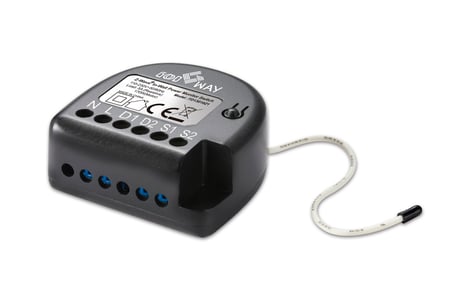

Product Picture
1 - D1 automatically turn off
0 : Disable (Default) 1~32767 : Time in second that the O2 will turn off automatically.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 32767 | D1 automatically time |
2 - D2 automatically turn off
0 : Disable (Default) 1~32767: Time in second that the O2 will turn off automatically.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 32767 | D2 automatically time |
3 - Switch Type
0 : Toggle switches (Default) 1 : Toggle switches with memory 2 : Momentary switchSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | switch type |
4 - Reload power status
0 : device does not memorize its status at power cut. Load is disconnected (Default) 1 : device memorizes its status at the power cut. Load will be set to the status from before power cut.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Reload power status |
5 - Power reporting on power change
0 : Disabled 1~100 : 1 % ~ 100 %. (Default = 10%)Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disble |
| 1 | 100 | change rate |
6 - Watts auto-report period
0 : Disabled 60~32767Seconds. (Default = 300 Seconds)Size: 2 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 60 | 32767 | Watts auto-report period |
7 - KWH auto-report period
0 : Disabled Set time interval of reporting KWH (60 ~32767) in seconds.Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 60 | 32767 | KWH auto-report period |
8 - D1 automatically turn on
0 : Disable (Default) 1~32767 : Time in second that the O2 will turn on automatically.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 32767 | D1 automatically turn on |
9 - D2 automatically turn on
0 : Disable (Default) 1~32767: Time in second that the O2 will turn on automatically.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 32767 | D2 automatically turn on |
Include/Exclude Button - Inclusion/exclusion, press 3 times in 2 seconds
Include/Exclude Button - Inclusion/exclusion, press 3 times in 2 seconds
Press the pairing button 3 times in 2 seconds and press and hold the pairing button for more than 5 seconds at the 3rd time. The module is excluded and restores to factory default setting. Then the module will be in auto-inclusion mode for 2 minutes. Please use this procedure only when the network primary controller is missing or otherwise inoperable. The Device Reset Locally Command Class is used to notify central controllers that a Z-Wave device is resetting its network specific parameters.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| Meter type |
|---|
| Electric Meter Consumption |
