Philia
Philia Door Lock
PDS-100
Door Lock - Keypad
HW: 1 FW: 1.00:01.00
ZM5101
6.71.03
0x0366 (870)
0x0001 (1)
0x0001 (1)
ZC10-18076195
2018-07-16 23:42:00.437708
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Philia Door Lock that can be used conveniently with Z-Wave and Bluetooth.
The PDS-100 is a door lock that can be conveniently used with Z-Wave and Bluetooth. You can control the door lock directly from a phone via the Bluetooth function in close range, check the status of the door lock on the outside by connection to the Z-Wave hub as well as control door locks and check status via Google Home or Amazon Alexa.

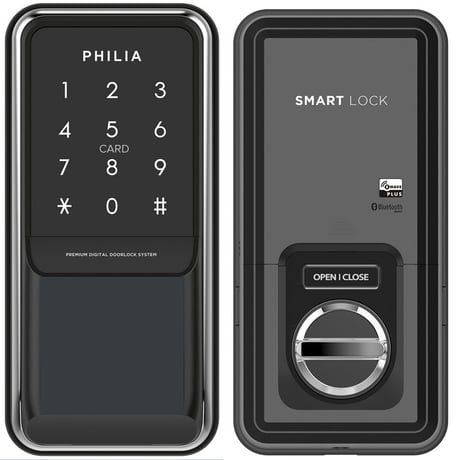

Product Picture
Please proceed with the door lock open. 1. Set the controller in inclusion mode. 2. Open the battery cover of the indoor body and press the [R] button for 7 seconds. 3. Press the [1][4][7] button after pressing the [R] button.
Please proceed with the door lock open. 1. Set the controller in exclusion mode. 2. Open the battery cover of the indoor body and press the [R] button for 7 seconds. 3. Press the [3][6][7] button after pressing the [R] button.
Please proceed with the door lock open. 1. Open the battery cover of the indoor body and press the [R] button for 9 seconds. 2. Press the [1][2][3][6][5][4][7] button after pressing the [R] button. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
