QUBINO
Flush Shutter DC
ZMNHOD3
Window Covering - Pos/End Aware
HW: 1 FW: 6.04:06.05
ZM5202
6.51.09
0x0159 (345)
0x0003 (3)
0x0053 (83)
ZC10-18066155
2018-06-15 22:59:15.318423
N/A
Enhanced 232 Slave
Always On Slave
The Qubino Flush Shutter DC is ideal for controlling the 12–24V DC motors of blinds, rollers, shades, venetian blinds and similar sunscreens.
The Qubino Flush Shutter DC is ideal for controlling the 12–24V DC motors of blinds, rollers, shades, venetian blinds and similar sunscreens. You can control it either remotely through the Z-Wave network or through wall switches. It also measures power consumption and supports the connection of a digital temperature sensor.

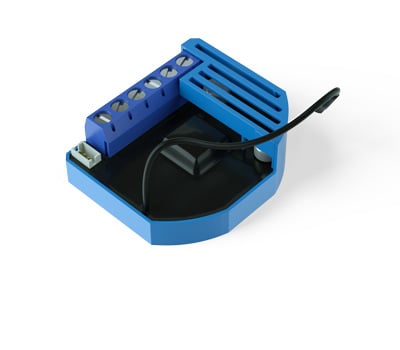

Product Picture
10 - Activate/deactivate functions ALL ON / ALL OFF
Flush Shutter DCs module responds to commands ALL ON / ALL OFF that may be sent by the primary or secondary controller within the Z-Wave network.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | ALL ON is not active, ALL OFF is not active |
| 1 | 1 | ALL ON is not active ALL OFF active |
| 2 | 2 | ALL ON active ALL OFF is not active |
| 255 | 255 | ALL ON active, ALL OFF active |
40 - Power reporting in Watts on power change for Q1 or Q2
Choose by how much power consumption needs to increase or decrease to be reported. Values correspond to percentages so if 10 is set (by default), the module will report any power consumption changes of 10% or more compared to the last reading. NOTE: Power consumption needs to increase or decrease by at least 1 Watt to be reported, REGARDLESS of percentage set in this parameter.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting disabled |
| 1 | 100 | = 1% - 100% Reporting enabled. Power report is send (push) only when actual power (in Watts) in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1%. |
| 10 | 10 | default value |
42 - Power reporting in Watts by time interval for Q1 or Q2
The set value refers to the time interval with which the power consumption in Watts is reported (0 – 32767 seconds). If 0 is entered (by default), energy consumption reports will not be sent to the controller.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting disabled |
| 1 | 32767 | = 1 second - 32767 seconds. Reporting enabled, power report is send with |
71 - Operating modes
Choose between the two operating modes. If the venetian mode is selected, an additional widget/endpoint will be displayed on the UI interface, which can be used to control the tilt position of the slats. If the Shutter mode is selected, this additional endpoint is hidden. NOTE1: After the value of this parameter is changed, first exclude module (without setting parameters to their default values), wait at least 30s and then reinclude the module!Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | shutter mode |
| 1 | 1 | venetian mode (up/down and slate rotation) |
72 - Slats tilting full turn time
Set the time, required by the slats, to make a full turn (180 degrees). NOTE: If the set time is too long and a full turn was already performed, the device will start to move up or down for the remaining time.Size: 2 bytes
Default: 150
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | tilting time disabled |
| 1 | 32767 | = 0,01seconds - 327,67 seconds |
| 150 | 150 | = 1,5 seconds |
73 - Slats position
Choose the position of the slats after up/down movement (activated through the Z-Wave controller or the push-buttons) is completed.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Slats return to previously set position only in case of Z-wave control (not valid for limit switch positions) |
| 1 | 1 | Slats return to previously set position in case of Z-wave control, push-button operation or when the lower limit switch is reached |
74 - Motor moving up/down time
This parameter defines the time, required by the Shutter DC motor, to completely open or completely close the attached shutters. After the set time passes, the motor stops (relay goes to the off state). NOTE: It is important that the reference position, for setting the moving time, is always when the Shutter is at its lowest position! Set parameter 74 to 0 and move the Shutter (using the up/down push-buttons or the main controller UI) to the lowest desired position. When the Shutter reaches this position, set the parameter 74 to the duration, required by the Shutter, to completely open or completely close the attached shutters. At this point the Shutter can be moved up (open), but can't be moved down, because this position is already set as its lowest position. To change the defined lowest position of the Shutter below the one, which is already defined (manual recalibration), the parameter 74 must be set to 0 and the procedure, which is described above, should be repeated. In case the Shutter operates using limit switches, but the user still wants to control the opening/closing position with time, this is still possible. If a time duration, which is longer than the opening/closing time of the shutters in real time (limited by the limit switches), is set, the Shutter will stop at the limit switches, but the module relay will switch it off after a defined time, not by the limit switch of the Shutter. Take into consideration that in this condition, positioning the shutters with the slider (through the UI) will not display the correct position of the Shutter.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | moving time disabled (working with limit switches) |
| 1 | 32767 | = 0,1seconds - 3276,7seconds. After that time motor is stopped (relay goes to off state) |
76 - Motor operation detection
Define the power consumption threshold at the end positions. Based on this value, the device will know, that the shutters reached the limit switches.Size: 1 byte
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 100 | = (0,5W - 10W), step is 0,1W. |
| 6 | 6 | = 0,6W |
78 - Forced Shutter DC calibration
By changing the value of this parameter from 0 to 1, the Shutter enters the calibration mode. For further information about the calibration process, please see section 9.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | default value |
| 1 | 1 | start calibration process (when calibration process is finished, completing full cycle - up, down and up, set the parameter 78 (Forced Shutter calibration) value back to 0 |
85 - Power consumption max delay time
Define the maximum time before the power consumption of the motor, after one of the relays is switched ON, is read from the device. If there is no power consumption during the set time (motor not connected, damaged or requires longer time to start, motor at the end position), the relay will switch OFF. This time is defined by entering it manually.Size: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 50 | = 0,3seconds - 5seconds (100ms resolution) |
| 8 | 8 | = 800ms |
86 - Power consumption at limit switch delay time
This parameter defines the maximum time after which the active output will switch off, due to reaching a limit switch. When power consumption is below the specified power threshold, defined in the parameter no. 76, the set time duration will have to pass in order for the output to turn off.Size: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 50 | = 0,3seconds - 5seconds (100ms resolution) |
| 8 | 8 | 8 = 800ms |
90 - Time delay for next motor movement
This parameter defines the minimum time duration between successive motor movements (minimum time after which the motor is switched off and on again).Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 30 | = 0,1seconds - 3seconds (100ms resolution) |
| 5 | 5 | = 500ms |
110 - Temperature sensor offset settings
Set value is added to or subtracted from the actually measured value to adjust the temperature report sent by an external sensor (sold separately). This parameter only applies to the degrees temperature unit (the Fahrenheit unit is currently not supported).Size: 2 bytes
Default: 32536
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | value from 0.1 degrees Celsius to 10.0 degrees Celsius is added to actual measured temperature. |
| 1001 | 1100 | value from -0.1 degrees Celsius to -10.0 degrees Celsius is subtracted to actual measured temperature. |
| 32536 | 32536 | offset is 0.0C |
120 - Temperature sensor reporting
If an external digital temperature sensor (sold separately) is connected to the module, it reports temperature readings based on the threshold defined in this parameter. This parameter only applies to the degrees temperature unit (the Fahrenheit unit is currently not supported).Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | = 0,1 degrees Celsius - 12,7 degrees Celsius, step is 0,1 degrees Celsius |
| 5 | 5 | = 0,5 degrees Celsius |
• Connect module to power supply (with temperature sensor connected - if purchased), • auto-inclusion (works for about 5 seconds after connected to power supply) or • press service button S for more than 2 second or • press push button I1 three times within 3s (3 times change switch state within 3 seconds). NOTE1: For auto-inclusion procedure, first set main controller into inclusion mode and then connect module to power supply. NOTE2: When connecting temperature sensor to module that has already been included, you have to exclude module first. Switch off power supply, connect the sensor and re-include the module.
• Connect module to power supply • bring module within maximum 1 meter (3 feet) of the main controller, • enable add/remove mode on main controller, If service button S is pressed more than 2 and less than 6 seconds (or if push button I1 is pressed three times within 3s) module is excluded, but configuration parameters are not set to default values. NOTE: Please use this procedure only when the network primary controller is missing or otherwise inoperable.
press service button S for more than 6 second or • press push button I1 five times within 3s (5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply. By this function all parameters of the module are set to default values and own ID is deleted. NOTE: Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| Meter type |
|---|
| Electric Meter Consumption |
