Sharp Corporation
Open/Close Sensor
DN3G6JA082
Notification Sensor
HW: 255 FW: 0.84
SD3502
6.71.03
0x010B (267)
0x4761 (18273)
0x0082 (130)
ZC10-18086204
2018-07-05 23:01:00.12777
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The Open/Close Sensor is a product for IoT with magnetic sensors and with functions of Z-Wave communication. It can collect sensing data that door open/close by using a magnet. And it sends the data to the gateway.
The Open/Close Sensor is a product for IoT with magnetic sensors and with functions of Z-Wave communication. It can collect sensing data that door open/close by using a magnet. And it sends the data to the gateway. The Open/Close Sensor has the following general features: - Z-Wave communication - Sensing with Open/Close sensor (detecting the opening and shutting of the door by using a magnet), Tamper switch.

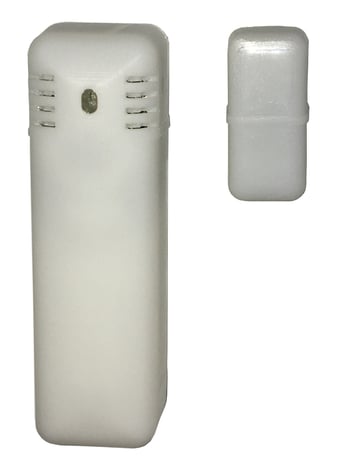

Product Picture
2 - Enable switch
Enable switch of "Alarm Notification" reportSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Open/Close OFF |
| 1 | 1 | Open/Close ON |
-Add (Inclusion) Insert a CR123A, and LED blinks. Set the controller to the status for “Add”. Press the button over 3 seconds and release. About “Add” is completed, LED turns off. (If security include, LED turns off will soon after “Preparing inclusion” process.) Note) After inclusion completed, this sensor keep waking about 40 seconds, for interview process. During this time, button operation is disabled.
-Remove (exclusion) Set the controller to the status for “Remove”. Press the button over 3 seconds and release. LED blinks when “Remove” is completed.
Press the button one push and release. “Wakeup Notification“ will be sent.
Press the button over 10 seconds and release. Please use this procedure only when the network primary controller like the gateway is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
