Sharp Corporation
Motion Detect Sensor
DN3G6JA084
Notification Sensor
HW: 255 FW: 0.81
SD3502
6.71.03
0x010B (267)
0x4761 (18273)
0x0084 (132)
ZC10-18086205
2018-07-05 23:18:02.495335
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The Motion Detect Sensor is a product for IoT with a PIR motion detect sensor and with functions of Z-Wave communication. It can collect sensing data of human motion. And it sends the data to the gateway.
The Motion Detect Sensor is a product for IoT with a PIR motion detect sensor and with functions of Z-Wave communication. It can collect sensing data of human motion. And it sends the data to the gateway. The Motion Detect Sensor has the following general features: - Z-Wave communication - Sensing with the following Motion detect sensor (PIR motion sensor), Tamper switch.

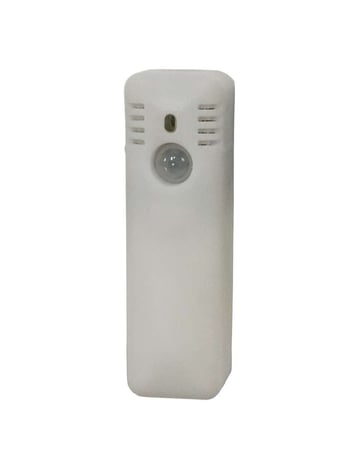

Product Picture
2 - Enable switch
Enable switch of "Alarm Notification" reportSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Motion detect OFF |
| 1 | 1 | Motion detect ON |
-Add (Inclusion) Insert a CR123A, and LED blinks. Set the controller to the status for “Add”. Press the button over 3 seconds and release. About “Add” is completed, LED turns off. (If security include, LED turns off will soon after “Preparing inclusion” process.) Note) After inclusion completed, this sensor keep waking about 40 seconds, for interview process. During this time, button operation is disabled.
-Remove (exclusion) Set the controller to the status for “Remove”. Press the button over 3 seconds and release. LED blinks when “Remove” is completed.
Press the button one push and release. “Wakeup Notification“ will be sent.
Press the button over 10 seconds and release. Please use this procedure only when the network primary controller like the gateway is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
