Philio Technology
DoorLock
PSA03-US
Door Lock - Keypad
HW: 255 FW: 0.10
SD3502
6.81.01
0x013C (316)
0x000A (10)
0x0069 (105)
ZC10-18076194
2018-07-20 00:51:22.731622
N/A
Enhanced 232 Slave
Listening Sleeping Slave
This doorlock PSA03 is a security enabled wireless device, based on Z-Wave technology,
This doorlock PSA03 is a security enabled wireless device, based on Z-Wave technology,It can open/close door via wireless controll , and can set/remove usercode.when manually open/ close door, it can report . low battery warning it can report.

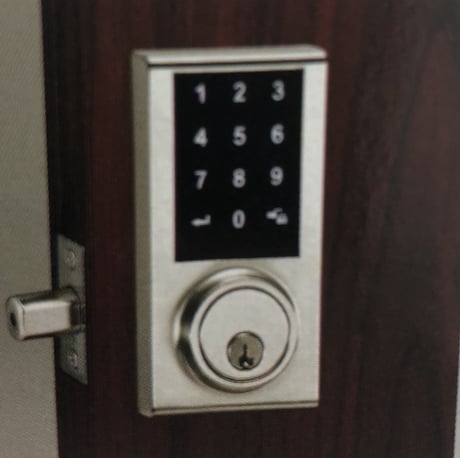

Product Picture
1.check Z-WaveTM Controller entered inclusion mode. 2.Press the Add/Remove function “enterPC” is enter “0000”(default) enterPC->enter-> 1 -> 0 ->enter 3.After add successful, it will have twice beep sounds.if inclusion fail it will have five beep. Notice 1 : if you reset doorlock ,you have to do OPERATING INSTRUCTION no.1(door handling identification process ) Notice 2:if Door lock in learn mode,device can stop on operation setting mode,until success include or 60s time out.
1.check Z-WaveTM Controller entered exclusion mode. 2.Press the Add/Remove function “enterPC” is enter “0000”(default) enterPC->enter-> 1 -> 0 ->enter 3.After remove successful, it will have twice beep sounds.if exclusion fail it will have five beep. Notice 1 : if you reset doorlock ,you have to do OPERATING INSTRUCTION no.1(door handling identification process ) Notice 2:if Door lock in learn mode,device can stop on operation setting mode,until success include or 60s time out.
1.Press the black key in battery cover, and until 5s time up.device can beep two times. 2.Device can send resetlocally notification note : Please use this procedure only when the network primary controller is missing or otherwise inoperable.
