American Standard
Gold XV 824
ACONT824AS52DBA
Central Controller
HW: 1 FW: 22.12:22.12
ZM5202
6.51.08
0x008B (139)
0x4138 (16696)
0x3235 (12853)
ZC10-18076177
2018-07-01 05:29:53.68947
N/A
Static Controller
Central Static Controller
Embedded within the Gold 824 comfort control is a secure Z-Wave Plus Central Static Controller designed to enable remote control of a Z-Wave network from the Nexia Home Intelligence web portal.
When enrolled to a Nexia™ smart home account, the Gold 824 is a Z-Wave Plus security-enabled device that can serve as a central hub for an entire network of home automation devices from different manufacturers and product categories, including all non-battery powered devices that will act as repeaters on your network. The Gold 824 can display local weather conditions, five-day forecasts and National Weather Service warnings and alerts.

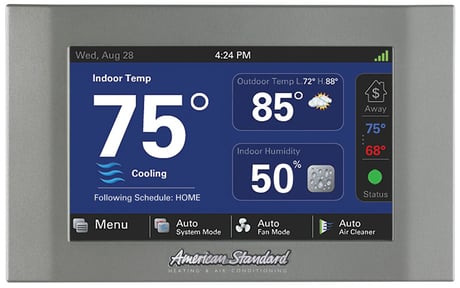

Product Picture
To add the bridge to an existing network, follow your primary controller’s instructions to put the primary controller into Add Mode. Then press the Learn button on the bridge. From the HOME Screen, press MENU, NEXIA, ADVANCED, then LEARN. This function copies a new Z-Wave network to the bridge from another controller. This function is not allowed if your bridge is a primary controller with included Z-Wave devices.
From the HOME Screen, press MENU, NEXIA, ADVANCED, then FACTORY RESET. Resets all Z-Wave information and removes all devices from the bridge. If this bridge is the primary controller for your network, resetting it will result in all the devices in your network being removed. Following the reset, it will be necessary to remove and then add all of the devices back to your network. If this bridge is being used as a secondary or inclusion controller in the network, please reset this bridge only in the event that the primary controller is missing or otherwise inoperable.
From the HOME Screen, press MENU, then press NEXIA. Press ADD DEVICE and follow the device manufacturer’s instructions for setting the Z-Wave device into learn mode. You will have four minutes to set the device into learn mode after pressing the ADD DEVICE button.
From the HOME Screen, press MENU, then press NEXIA. Press REMOVE DEVICE and follow the manufacturer’s instructions for setting the Z-Wave device into learn mode. You will have four minutes to set the device into learn mode after pressing the REMOVE DEVICE button.
| Type | Value(s) |
|---|
