HEIMAN
Smart Switch
HS2SW1A-Z
On/Off Power Switch
HW: 255 FW: 3.01
ZM5202
6.71.03
0x0260 (608)
0x8010 (32784)
0x1000 (4096)
ZC10-18096239
2018-09-26 00:24:18.062805
N/A
Enhanced 232 Slave
Always On Slave
The smart switch is designed to control switch by mobile phone APP, it adopts Z-Wave wireless communication technology.
The smart switch is designed to control switch by APP, it adopts Z-Wave wireless communication technology. With the smart switch, the user can turn on or off any light at home by one mobile phone APP.

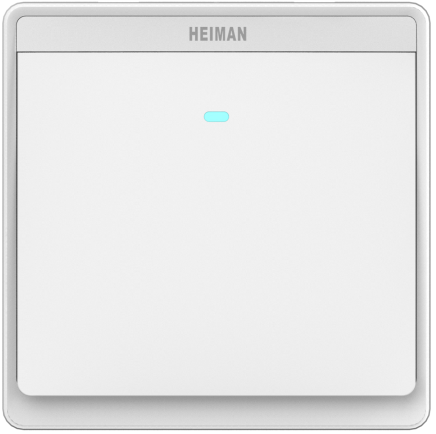

Product Picture
‐ Click [Add] icon in Z‐Wave Controller. - Press the Net_Button 3 times within 1.5s, Green LED will flash 3 times within 1 .5s. ‐ If add Process is successful, Green LED will turn off.
‐ Click [Remove] icon in Z‐Wave Controller. ‐ Press the Net_Button 3 times within 1.5s. -If remove Process is successful, Green LED will flash 6 times, then turn off.
‐Long press Net_Button at least 10 seconds in the product. ‐ Device Reset Locally notification is Transmitted. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| Appliance | (Refer to parameters): State idle |
