HEIMAN
Smart Smoke Alarm
HS1SA-Z
Notification Sensor
HW: 255 FW: 3.01
ZM5202
6.71.03
0x0260 (608)
0x8002 (32770)
0x1000 (4096)
ZC10-18076198
2018-07-30 23:51:48.104385
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The Smart Smoke Alarm adopts Z-Wave protocol, when the sensor detects smoke to the set level, it will issue acoustic-optic alarm to alert the users and also send alarm notifications to gateway immediately.
The Smart Smoke Alarm adopts Z-Wave protocol, when the sensor detects smoke to the set level, it will issue acoustic-optic alarm to alert the users and also send alarm notifications to gateway immediately.It's suitable to be installed in living room, office,warehouse,and etc.

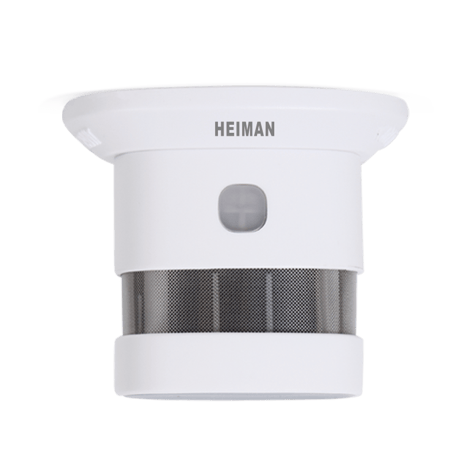

Product Picture
- Click [Add] icon in Z-Wave Controller . - Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second. - If Inclusion Process is successful, Green led will turn off.
- Click [Remove] icon in Z-Wave Controller - Press the Net_Button 3 times within 1.5s - If Exclusion Process is successful, Green led is Blinking 6 times, then turn off.
--Long press Net_Button while installing batteries in the product. - Device Reset Locally notification is Transmitted. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm | State Idle |
| Emergency Alarm | (Refer to parameters): State idle |
