Brand

Steinel GmbH

Name

Motion Switch LED

Part number

40111665101.0

Device type

Notification Sensor

Description

The MotionSwitch LED Z-Wave is a motion detector, brightness sensor, pushbutton and orientation light in one. Above all, it is easy to integrate and operate: plug it into the socket, install it via the Smart Friends app and control the interior lights, roller shutter motors, sound systems, alarm systems etc. easily and conveniently.

Description long

Smart home from the socket. One product, four features, many possibilities: The MotionSwitch LED Z-Wave is a motion detector, brightness sensor, pushbutton and orientation light in one. No cable laying, no battery change - just plug it into the socket and off you go. The smart sensor can be quickly and easily integrated into Z-Wave based Smart Home systems like Smart Friends, making our everyday life smarter. For example, through automatic corridor lighting as soon as the 180 ° infrared sensor with a range of 20 m detects movement. Or by automatically darkening as soon as a certain degree of brightness is reached. Thanks to the integrated button, actuators, for example a radio, can be switched on manually. And the automatic orientation light ensures good visibility at night with 3000 K. Smart Home can be so easy!

Z-Wave Features

Categories (4)

All Lighting Devices

Lighting Accessories

On/Off Switches/Devices

Sensors

Z-Wave Chip Series

500

Region (1)

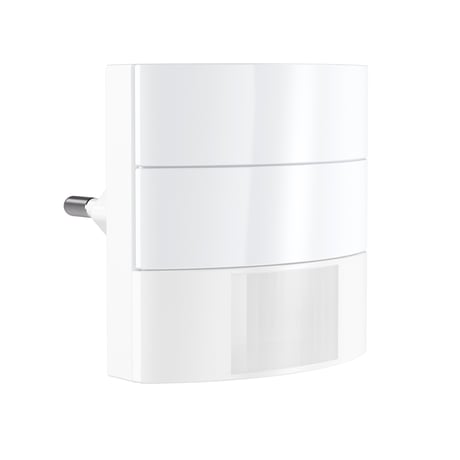

Product Picture

0 / 0

Download configuration parameters

Download configuration parameters and import them in your Smart Home hub.

Please log in to download configuration parameters

1 - Time

Duration of light after motion detection.

Size: 2 bytes

Default: 180

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
5	900	seconds

2 - Light

Lux threshold for night mode detection

Size: 2 bytes

Default: 2000

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	run Learn ambient light sequence
2	1999	Lux
2000	2000	is used as daylight (always night mode)

5 - Sensitivity

PIR sensitivity

Size: 1 byte

Default: 100

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
2	100	%

6 - Brightness measuring interval

Interval for measuring ambient light when lamp is on (lamp switches off briefly and measures).

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	function is off
5	120	minuts

8 - Global light

When GLOBAL_LIGHT mode is ON – device overrides its own light sensor values and uses Light report values from any Z-Wave light sensor instead – this has to be configured appropriately to send light automatically. If the last remote light level value is older than 30 minutes, the internal light value is used again until the next external value is received.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	1	binary off/on

9 - Slave mode

Slave mode (bit0) means: LED is directly controlled via Z-Wave, internal sensors are not used for controlling it Central unit checking (bit 1): (useful especially for controlling via gateway) When slave bit is 0: - device signalises fail of lifeline connection (if this bit is zero, fail of lifeline connection is not signalised) When slave bit is 1: - device checks presence of Z-Wave device in lifeline group (gateway). If it is not present for 2 minutes (testing repeatedly every 30 seconds) device switches to normal mode in the same way as after the end of local disabled mode (ON_BEHAVIOUR) - the device checks every 1 minute for recovery of Lifeline connection. - if no lifeline specified - it works in normal mode

Size: 1 byte

Default: 2

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Normal mode
1	1	Slave mode
2	2	Normal mode with checking lifeline
3	3	Slave mode with checking lifeline
4	4	LED is permanently on

10 - Off behaviour

Behaviour after BASIC OFF (and similar commands). If a transition (even with zero change) with a non-default duration is to be processed, the transition cannot be interrupted by any motion event in any case

Size: 2 bytes

Default: 10

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	LED is switched off and remains so until any new motion event (local or remote) is received.
1	209	LED is switched off and remains so until after a specified timeout once a new motion event (local or remote) is received. Timeout: 1..100 – 1 second (1) to 100 seconds (100) in 1-second resolution 101..200 – 1 minute (101) to 100 minutes (200) 1-minute resolution 201..209 – 1 hour (201) to 9 hours (209) in 1-hour resolution
255	255	LED is switched off for TIME (cfg 1). It does not wait for a motion event and works normally via current motion evaluation.

11 - On behaviour

Behaviour after BASIC ON (and similar commands). If a transition (even with zero change) with a non-default duration is to be processed, the transition cannot be interrupted by any motion event in any case.

Size: 2 bytes

Default: 255

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	LED is switched on and remains so until any new motion event (local or remote) is received. It then works normally via current motion evaluation. Notice – during the day, this mode cannot be ended remotely due to motion events not being transmitted – only via local motion sensor if enabled.
1	209	LED is switched on and remains so until after a specified timeout once a new motion event (local or remote) is received. It then works normally via current motion evaluation. Timeout: 1..100 – 1 second (1) to 100 seconds (100) in 1-second resolution 101..200 – 1 minute (101) to 100 minutes (200) in 1-minute resolution 201..209 – 1 hour (201) to 9 hours (209) in 1-hour resolution Notice – during the day, this mode cannot be ended remotely due to motion events not being transmitted – only via local motion sensor if enabled.
255	255	LED is switched on for TIME (cfg 1). It does not wait for a motion event and works normally via current motion evaluation.

12 - On behaviour time over

Time limit to stop waiting for motion after timeout of ON_BEHAVIOUR or OFF_ON_BEHAVIOUR (0-209) to prevent staying ON forever when there is no motion.

Size: 2 bytes

Default: 204

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	No additional waiting for motion.
1	209	1..100 – 1 second (1) to 100 seconds (100) in 1-second resolution 101..200 – 1 minute (101) to 100 minutes (200) in 1-minute resolution 201..209 – 1 hour (201) to 9 hours (209) in 1-hour resolution
255	255	Never stop waiting for motion.

13 - Sequence On-Off behaviour

Behaviour after a rapid sequence of BASIC ON and BASIC OFF commands. The intention is to use a much longer timeout value than the time after a single ON command which should then be followed by a short timeout value.

Size: 2 bytes

Default: 204

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	LED is switched off and remains so until any new motion event (local or remote) is received.
1	209	LED is switched off and remains so until after a specified timeout once a new motion event (local or remote) is received. Timeout: 1..100 – 1 second (1) to 100 seconds (100) in 1-second resolution 101..200 – 1 minute (101) to 100 minutes (200) 1-minute resolution 201..209 – 1 hour (201) to 9 hours (209) in 1-hour resolution
255	255	device ignores ON - OFF sequence and uses OFF behaviour

14 - Sequence Off-On behaviour

Behaviour after a rapid sequence of BASIC OFF and BASIC ON commands. The intention is to use a much longer timeout value than the time after a single OFF command which should then be followed by a short timeout value.

Size: 2 bytes

Default: 204

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	LED is switched on and remains so until any new motion event (local or remote) is received. It then works normally via current motion evaluation. Notice – during the day, this mode cannot be ended remotely due to motion events not being transmitted – only via local motion sensor if enabled.
1	209	LED is switched on and remains so until after a specified timeout once a new motion event (local or remote) is received. It then works normally via current motion evaluation. Timeout: 1..100 – 1 second (1) to 100 seconds (100) in 1-second resolution 101..200 – 1 minute (101) to 100 minutes (200) in 1-minute resolution 201..209 – 1 hour (201) to 9 hours (209) in 1-hour resolution Notice – during the day, this mode cannot be ended remotely due to motion events not being transmitted – only via local motion sensor if enabled.
255	255	device ignores OFF - ON sequence and uses ON behaviour.

15 - Sequence timing

Time in [100 milliseconds] of maximum delay between BASIC ON and BASIC OFF (and vice versa) to consider this as a sequence. It is typically 1 second, but can be exceptionally longer due to retransmissions and overload – in this case, a longer interval can be allowed (up to 5 seconds).

Size: 1 byte

Default: 10

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
10	50	100 ms

16 - Motion Off behaviour

Motion disable timeout after BASIC SET to motion endpoint when the internal motion sensor is not used for evaluating the behaviour of the LED and groups 2 and 3. Events are, however, still transmitted to the Lifeline, and the device can be controlled via remote motion sensors.

Size: 2 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	BASIC SET to Motion sensor endpoint ignored, BASIC to root is mapped to LED endpoint, motion sensor still enabled
1	209	Internal motion sensor is disabled for specified timeout after BASIC SET 0x00 to Motion sensor endpoint. BASIC to root is mapped to Motion sensor endpoint.(SPIR) Timeout: 1..100 – 1 second (1) to 100 seconds (100) in 1-second resolution 101..200 – 1 minute (101) to 100 minutes (200) in 1-minute resolution 201..209 – 1 hour (201) to 9 hours (209) in 1-hour resolution
255	255	BASIC SET to Motion sensor endpoint ignored, BASIC to root is mapped to LED endpoint, motion sensor still disabled

17 - Button behaviour

Bitfield descibing button functionability: Dim increase (bit 0): - long press of button does dim decreasing (0 = default) - long press of button does dim increasing (1) Scene switch (bit 1): - short press of button does toggle – on/off (0 = default) - short press of button does scene switch (1) Standalone behaviour (bit 2): - using “legacy” sensor deactivity after button press (0 = default) - using “cfg 10-14” sensor deactivity after button press (1) Network behaviour (bit 3): - using “legacy” sensor deactivity after button press (0) - using “cfg 10-14” sensor deactivity after button press (1 = default) Dim disable (bit 4): - dim events (long press) are used (0 = default) - dim events (long press) are ignored (1) “legacy” sensor deactivity behaviour does this: -Pressing push button when LED is OFF: LED will switch on as long as there is movement and the delay time runs of -Pressing push button when LED is ON: LED will switch off as long as there is movement ans the delay time runs of (invers logic). “cfg 10-14” sensor deactivity behaviour uses behaviour specified in parameters 10-14 (the same behaviour as pressing of external switch using BASIC ON/OFF functions)

Size: 1 byte

Default: 8

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	31	bit field

18 - Button scenes

Parameters 18 specifies scene numbers (from 1 to number) to be switched by toggle button.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	do not use any scene
1	127	up to scene number

19 - Legacy inactivity time

In “legacy” button mode function this timeout is used to cancel motion sensor inactivity mode after motion end (both for on and off state of LED).

Size: 2 bytes

Default: 103

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	209	Timeout: 1..100 – 1 second (1) to 100 seconds (100) in 1-second resolution 101..200 – 1 minute (101) to 100 minutes (200) in 1-minute resolution 201..209 – 1 hour (201) to 9 hours (209) in 1-hour resolution

Type	Name
Product or Owner's Manual	Motion_Switch_LED-180718.pdf

Group	Type
Emergency Alarm	(Refer to parameters): State idle

Sensor type
General Purpose
Illuminance
