HEIMAN
Smart Temperature & Humidity Sensor
HS1HT-Z
Notification Sensor
HW: 255 FW: 3.01
ZM5202
6.71.03
0x0260 (608)
0x8007 (32775)
0x1000 (4096)
ZC10-18076197
2018-07-24 15:59:43.120255
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The smart humidity and temperature sensor adopts Z-Wave protocol. It is used to detect humidity and temperature. When the humidity or temperature exceeds the alarm thresholds, it will send alarm notifications to gateway immediately.

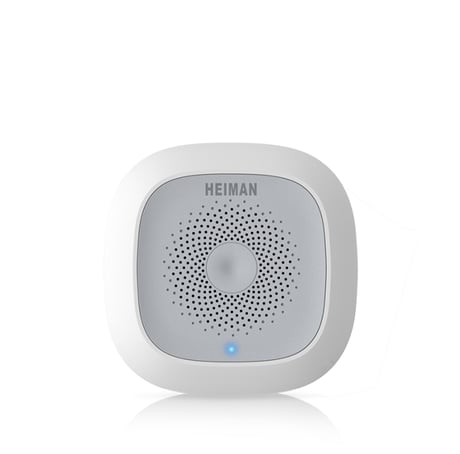

Product Picture
- Click [Add] icon in Z-Wave Controller. - Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second. - If Inclusion Process is successful, Green LED will turn off.
- Click [Remove] icon in Z-Wave Controller. - Press the Net_Button 3 times within 1.5s - If Exclusion Process is successful, Green LED is Blinking 6 times, then turn off
Wake up Notification is transmitted every 300 seconds by default.
-Long press Net_Button at least 10 seconds in the product. - Device Reset Locally notification is Transmitted. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| Humidity |
