HEIMAN
Smart Door Sensor
HS3DS-Z
Notification Sensor
HW: 255 FW: 3.01
ZM5101
6.71.03
0x0260 (608)
0x0168 (360)
0x0168 (360)
ZC10-18106248
2018-08-23 00:28:44.88779
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The smart door sensor adopts Z-Wave protocol, it can detect the open or close state of door or window. when the door sensor is armed, when the door or window is opened, it will send alarm notifications to gateway immediately.

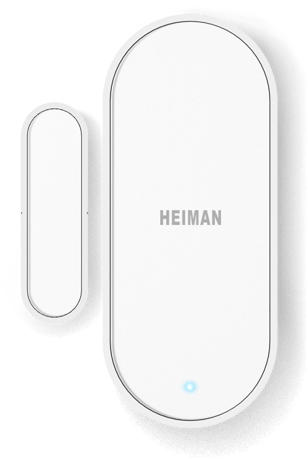

Product Picture
- Click [Add] icon in Z-Wave Controller . - Press the Networking_Button 3 times within 1.5s, Green LED is Blinking 4 times within 1 second. - If Inclusion Process is successful, Green led will turn off.
- Click [Remove] icon in Z-Wave Controller - Press the Networking_Button 3 times within 1.5s - If Exclusion Process is successful, Green led is Blinking 6 times, then turn off.
Long press Networking_Button while installing batteries in the Device -Device Reset Locally notification is Transmitted -Green LED Turns off after 2 seconds. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
| Irrigation | (Refer to parameters): State idle |
