HEIMAN
Smart Metering Plug
HS2SK-Z
On/Off Power Switch
HW: 255 FW: 3.01
ZM5202
6.71.03
0x0260 (608)
0x8006 (32774)
0x1000 (4096)
ZC10-19016360
2019-01-29 22:16:05.113838
N/A
Routing Slave
Always On Slave
The smart metering plug, adopts flame-retardant engineering material and Z-Wave protocol. it can be controlled by APP remotely. It also supports power metering and timing switch, and the function of power, voltage, current overload protection.

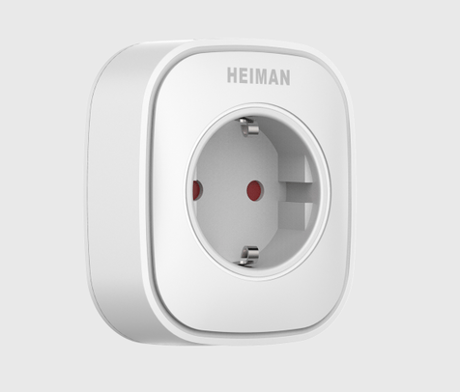

Product Picture
- Click [Add] icon in Z-Wave Controller. - Press the SW_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second. - If add Process is successful, Green LED will turn off.
- Click [Remove] icon in Z-Wave Controller. - Press the SW_Button 3 times within 1.5s - If remove Process is successful, Green LED is Blinking 6 times, then turn off.
-Long press SW_Button at least 10 seconds in HS2SK-Z. - Device Reset Locally notification is Transmitted. -Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
