Zooz
S2 Z-Wave Plus USB Stick
ZST10
Hardware Device
HW: 0 FW: ERROR
ZM5101
6.81.01
N/A
N/A
N/A
ZC10-18116317
2018-07-20 01:19:42.708915
N/A
Static Controller
Hardware Device
Plug the USB Stick to your computer and add S2 Z-Wave Plus to your smart home system.
FEATURES: - Z-Wave Plus Static USB Controller - Latest S2 security protocol for a truly private network - Works with Smart Start Z-Wave devices - Extended range up to 130 feet indoors and up to 500 feet in open space - Z-Wave Plus chip for faster command processing - LED indicator signals wireless communication in progress for efficient troubleshooting - No drivers needed: works out of the box on Windows, Linux, and MAC OS SPECIFICATIONS: - Model Number: ZST10 - Z-Wave Frequency: 908.42 MHz - Power: 4.75-5.25 VDC - SDK: 6.81.02 - Range: Up to 130 feet indoors - Operating Temperature: 14-104° F - Installation and Use: Indoor only - Dimensions: 3.5” x 1” x 0.4”

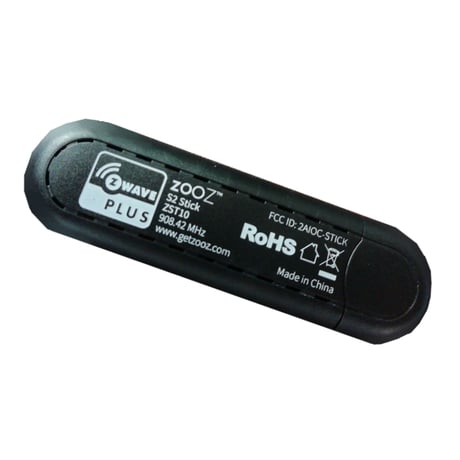

Product Picture
The S2 stick can only be reset by the host software while it’s in SerialAPI mode. The device is reset once an appropriate command from the host software is sent to reset the Z-Wave network.
S2 Security Protocol
To include the S2 stick in your current system as a secondary controller, send the inclusion command and put the S2 stick into learning mode, using the SerialAPI mode.
To remove the S2 stick from your current system, send the exclusion command and put the S2 stick into learning mode, using the SerialAPI mode.
| Type | Value(s) |
|---|
