HEIMAN
Smart Motion Sensor
HS3MS-Z
Notification Sensor
HW: 255 FW: 3.01
ZM5202
6.71.03
0x0260 (608)
0x8001 (32769)
0x1001 (4097)
ZC10-18106273
2018-10-04 00:34:16.11686
N/A
Routing Slave
Reporting Sleeping Slave
Yes
When the gateway is in the armed state, once the motion sensor detects the movement of a person, it will send alarm signals to gateway, and the gateway will send the alarm signal to mobile phone App immediately.

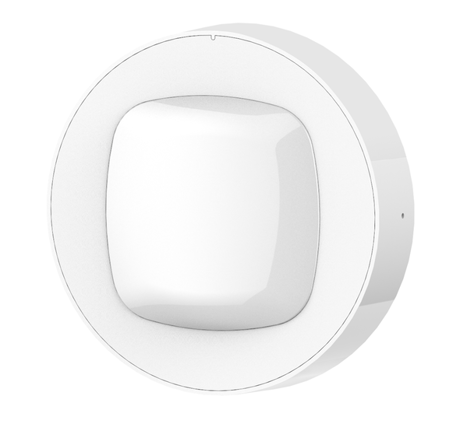

Product Picture
- Click [Add] icon in Z-Wave Controller . - Press the Func_Button 3 times within 1.5s, Green LED is Blinking 4 times within 1 second. - If Inclusion Process is successful, Green led will turn off.
- Click [Remove] icon in Z-Wave Controller - Press the Func_Button 3 times within 1.5s - If Exclusion Process is successful, Green led is Blinking 6 times, then turn off.
- Wake up Notification is transmitted every 300s by default. - Wake up Notification is transmitted after Notification Report is Transmitted
Long press Func_Button while installing batteries in the Device -Device Reset Locally notification is Transmitted -Green LED Turns off after 2 seconds. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
