HEIMAN
Smart Water Leakage Sensor
HS3WL-Z
Notification Sensor
HW: 255 FW: 3.01
ZM5101
6.71.03
0x0260 (608)
0x8004 (32772)
0x1000 (4096)
ZC10-18106266
2018-08-23 00:31:35.477725
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The Smart Water Leakage Sensor can protect your house from potential water damage.
The Smart Water Leakage Sensor can protect your house from potential water damage.It can be placed near plumbing,sinks,aquariums,pumps,refrigerators,dishwashers,toilets,basements,washing machines,water heaters,and garages.

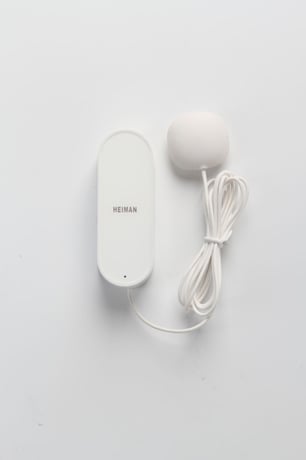

Product Picture
- Click [Add] icon in Z-Wave Controller . - Press the Networking_Button 3 times within 1.5s, Green LED is Blinking 4 times within 1 second. - If Inclusion Process is successful, Green led will turn off.
- Click [Remove] icon in Z-Wave Controller - Press the Networking_Button 3 times within 1.5s - If Exclusion Process is successful, Green led is Blinking 6 times, then turn off.
-Long press Networking_Button while installing batteries in the Device -Device Reset Locally notification is Transmitted -Green LED Turns off after 2 seconds. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Water Alarm | (Refer to parameters): State idle |
