Eaton
Eatons Z-Wave Plus Accessory Switch
RF9617
On/Off Power Switch
HW: 0 FW: 2.00
ZM5101
6.71.03
0x001A (26)
0x5352 (21330)
0x0504 (1284)
ZC10-18096233
2018-09-14 18:11:38.044577
N/A
Enhanced 232 Slave, No FLiRS, No MR
Always On Slave
Eaton’s Z-Wave Plus Accessory Switch can be used with Eaton's Z-Wave Plus devices to provide 3-way, multi-location ON/OFF control.
Eaton’s Z-Wave Accessory Switch can be used with Eaton's RF9601 switch & other Z-Wave Plus certified devices to provide 3-way, multi-location ON/OFF control of a selected Z-Wave wireless switch without the need for traditional 3-way wiring. You can use your compatible Z-Wave certified controller to associate each accessory with up to (5) other Z-Wave load controlling devices. Features & Benefits: • Wireless accessory for Eaton’s Z-Wave Wireless Switch (RF9601) • Ideal for applications where no traveler wires exist for 3-Way & multi-location control • Neutral is required for installation • Supports Z-Wave Plus technology including S2 Security certification for advanced encryption & cybersecurity • Can be associated with (5) other Z-Wave Plus devices when used with a compatible Z-Wave controller

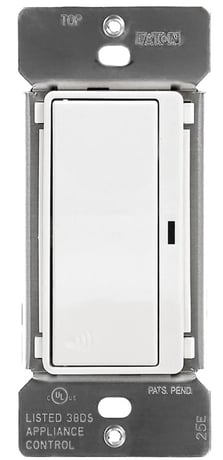

Product Picture
View configuration parameters (7)
1 - Delayed OFF Time
Allows the switch to turn off after a delay.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Delayed OFF Time |
2 - Panic ON Time
Sets ON time for Panic ModeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Panic ON Time |
3 - Panic OFF Time
Sets OFF time for Panic ModeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Panic OFF Time |
5 - Power UP State
1 = OFF 2 = ON 3 = Last StateSize: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Turn OFF when power is restored |
| 2 | 2 | Turn ON when power is restored |
| 3 | 3 | Return to last state when power is restored |
6 - Panic Mode Enable
0 = OFF 1 = ON As default Panic Mode is disabledSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn Panic Mode ON |
| 1 | 1 | Turn Panic Mode OFF |
13 - BLUE LED Brightness Level while the Switch is ON
Adjusts brightness of the BLUE Indicator LED 0 = OFF 4 = Maximum BrightnessSize: 1 byte
Default: 4
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Indicator stays OFF |
| 1 | 4 | Increase brightness of the indicator light |
14 - BLUE LED Brightness Level while the Switch is OFF
Adjusts brightness of the BLUE Indicator LED 0 = OFF 4 = Maximum BrightnessSize: 1 byte
Default: 1
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Indicator stays OFF |
| 1 | 4 | Increase brightness of the indicator light |
Operating instructions (3)
1. To include this device in a Z-Wave network, select the command on your Z Wave controller for inclusion (Install, Add Device, Add Node, Include Device, etc.). Then press the device ON/OFF button one time to include it in the network. 2. Based on the controller, the controller may ask you to scan the QR code or manually enter 5 digit code under the QR code to install the device as a secured device. You may find this QR code on the device or included in device packaging. 3. After the Device is added to the network, the blue indicator LED will stop blinking. This indicates the device is installed in the Z-Wave network.
1. To exclude this device from a Z-Wave network, select the setting on your Z-Wave controller for exclusion (Uninstall, Remove Device, Remove Node, Exclude Device, etc.). 2. Once your controller is in exclusion mode, press the device ON/OFF button one time to exclude it from the network. The LED will start blinking.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. The device could be reset locally. This will cause the device to be excluded from its network and restore to factory default. Before leaving the network the switch will send a notification to the controller indicating its departure from the Z-Wave network. 1. Turn the device ON. 2. Press and hold ON/OFF button for 20 second till the LED flashes for the third time. 3. Release the ON/OFF button. 4. LED will start flashing rapidly. Once the LED starts blinking slowly, that indicates the device is not part of the network.
Document (1)
| Type | Name | |
|---|---|---|
| Product or Owner's Manual | RF9601 and RF9617 Instruction Sheet.pdf |
Features (4)
| Type | Value(s) |
|---|
