Eaton
Eaton’s Z-Wave Plus Wireless Switch
RF9601
On/Off Power Switch
HW: 255 FW: 2.00
ZM5101
6.71.03
0x001A (26)
0x534C (21324)
0x0503 (1283)
ZC10-18096234
2018-09-14 18:09:46.797106
N/A
Enhanced 232 Slave, No FLiRS, No MR
Always On Slave
Eaton’s Z-Wave plus wireless switch replaces regular switches (where a neutral is present) to provide local and remote ON/OFF control for most common residential lighting loads including LEDs and certain motor loads.
Eaton’s Z-Wave plus wireless switch replaces regular switches (where a neutral is present) to provide local and remote ON/OFF control for most common residential lighting loads including LEDs and certain motor loads. Each switch can be manually and remotely controlled by commands sent from your compatible Z-Wave certified controller. Features & Benefits: • Replaces standard switch to add local and wireless control • Single pole and 3-Way control: Use with standard 3-Way switch or Z-Wave Plus Accessory RF9617 • Neutral is required for installation • Supports motors loads up to ½ HP • Features blue load indicating LED light that can be dimmed in ON or OFF state

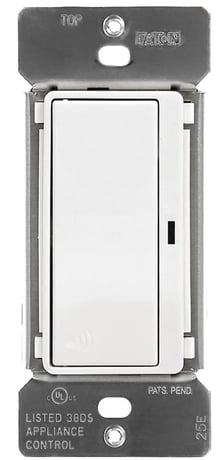

Product Picture
View configuration parameters (7)
1 - Delayed OFF Time
Turn the switch off with a preset delay. The default is 10 seconds. You can set this anywhere between 1 second till 127 seconds. The default is set at 10Size: 1 byte
Default: 10
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Delayed OFF Time |
2 - Panic ON Time
The interval when the switch Turns ON when Panic Mode is set to ONSize: 1 byte
Default: 1
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Panic ON Time |
3 - Panic OFF Time
The interval when the switch Turns OFF when Panic Mode is set to ONSize: 1 byte
Default: 1
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Panic OFF Time |
5 - Power Up State
Power UP state allows the users to set the state the device will come ON after power is restored. 1 = OFF 2 = ON 3 = Last State Default is OFFSize: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Turn OFF when Power is back |
| 2 | 2 | Turn ON when Power is back |
| 3 | 3 | Default to Last State when Power is Back |
6 - Panic Mode Enable
Panic Mode allows Eaton Z-Wave devices to Turn ON/OFF at a press of button. 0 = OFF 1 = ONSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Panic Mode is Turned OFF |
| 1 | 1 | Panic Mode is Turned ON |
13 - BLUE LED Brightness Level while the Switch is ON
Adjust the brightness of the Blue LED when switch is ON 0 = OFF 4 = Maximum brightnessSize: 1 byte
Default: 3
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Indicator Light stays OFF |
| 1 | 4 | Increase the level of brightness |
14 - BLUE LED Brightness Level while the Switch is OFF
Adjust brightness of the blue indicator LED with Switch is OFF 0 = OFF 4 = Maximum brightnessSize: 1 byte
Default: 1
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Indicator Light stays OFF |
| 1 | 4 | Increase the level of brightness |
Operating instructions (3)
1. To include this device in a Z-Wave network, select the command on your Z Wave controller for inclusion (Install, Add Device, Add Node, Include Device, etc.). Then press the device ON/OFF button one time to include it in the network. 2. Based on the controller, the controller may ask you to scan the QR code or manually enter 5 digit code under the QR code to install the device as a secured device. You may find this QR code on the device or included in device packaging. 3. After the Device is added to the network, the blue indicator LED will stop blinking. This indicates the device is installed in the Z-Wave network.
1. To exclude this device from a Z-Wave network, select the setting on your Z-Wave controller for exclusion (Uninstall, Remove Device, Remove Node, Exclude Device, etc.). 2. Once your controller is in exclusion mode, press the device ON/OFF button one time to exclude it from the network. The LED will start blinking.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. The device could be reset locally. This will cause the device to be excluded from its network and restore to factory default. Before leaving the network the switch will send a notification to the controller indicating its departure from the Z-Wave network. 1. Turn the device ON. 2. Press and hold ON/OFF button for 20 second till the LED flashes for the third time. 3. Release the ON/OFF button. 4. LED will start flashing rapidly. Once the LED starts blinking slowly, that indicates the device is not part of the network.
Document (1)
| Type | Name | |
|---|---|---|
| Product or Owner's Manual | RF9601 and RF9617 Instruction Sheet.pdf |
Features (14)
| Type | Value(s) |
|---|
