MCO Home
Heat Pump Thermostat
MH6-HP
Thermostat - HVAC
HW: 255 FW: 3.04
ZM5202
6.71.03
0x015F (351)
0x0604 (1540)
0x5101 (20737)
ZC10-18086210
2018-08-16 17:56:40.780403
N/A
Enhanced 232 Slave
Always On Slave
MH6-HP programmable thermostat is a Z-Wave Plus enabled device for indoor temperature control.
MH6-HP programmable thermostat is a Z-Wave Plus enabled device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability, and it can support up to 3H/2C system. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.

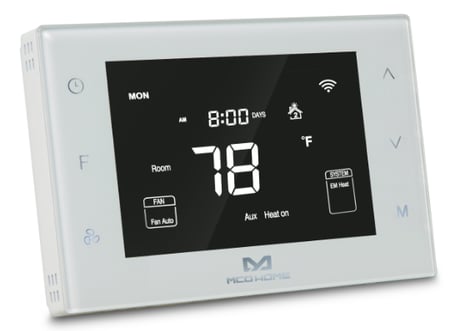

Product Picture
In normal display, press & hold ^ button to enter interface for adding Z-Wave network. Before device added into network, “- - -” will display on the screen. Then press ^ once, device will enter learning mode to get a node ID. If adding is successful, a Node ID will display on the screen in a few seconds.
In normal display, press & hold ^ button to enter interface for removing of Z-Wave network. A Node ID will display on the screen. Then press ^ button once, “- - -” will display on the screen to show removal was successful.
1、Remove the device from Z-Wave network can restore factory setting. 2、Configure the parameter 10 in secret menu can restore the factory setting also. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
