ZLINK
Water Leak Detector
ZL-LD-100
Notification Sensor
HW: 255 FW: 50.06
ZM5101
6.81.01
0x0315 (789)
0x0202 (514)
0x0001 (1)
ZC10-18096237
2018-09-19 02:43:22.827529
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
ZL-LD-100 is designed to detect and alert any water leaks in residential or commercial buildings.
ZL-LD-100 is designed to detect and alert any water leaks in residential or commercial buildings. ZL-LD-100 features an audible buzzer in addition to a wireless alert to your controller providing early notification of water leaks before major damage occurs. - Water sensing cable may be placed anywhere where there is a risk of a leak, horizontal (floor, attic) or vertical (wall, along pipes), providing 3D capability to sense the leak. - Senses as little as couple of drops of water (0.25ml – 0.5ml) - Provides hundreds of times more coverage vs. traditional single point sensors that only detect leaks in a very localized area. - Quickly senses water leaks (every 400msec with micro USB power supply, every 60 sec. with battery) before expensive damage occurs. - LD-100 reports local temperature once every 60 minutes on battery, when using micro USB power supply it can be set using configuration parameter 3. - Built-in audible buzzer sounds when water is detected. - Includes 4-foot-long sensing cable that senses water on any part of the cable. - Water sensing cable extend-able up to 150 feet with available extensions. - Powered by 3 x AAA batteries (not included) or standard 5V micro USB power supply (not included).

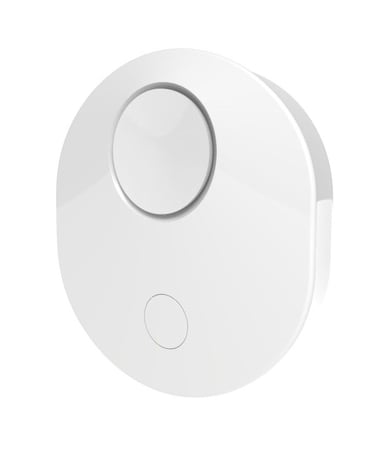

Product Picture
2 - Water detection beep frequency
Parameter 2 is for the beep interval when on battery power and on USB power during the time water is detected. 0= every 10 minutes 1= every 5 minutes 2= every 30 minutesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Parameter 2 is for the beep interval when on battery power and on line power during the time water is detected. 0= every 10 minutes 1= every 5 minutes 2= every 30 minutes |
3 - Temperature reporting interval
Parameter 3 defines the temperature interval of reporting to the controller on line power in seconds, the default value is 60.Size: 1 byte
Default: 60
Minimum: 30
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 255 | Parameter 3 defines the temperature interval of reporting to the controller on line power in seconds, the default value is 60. |
4 - Notification buzzer
The buzzer may be disabled when detecting water on line power or battery, using parameter 4, the default value is set to enabled.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | The buzzer may be disabled when detecting water on line power or battery, using parameter 4, the default value is set to enabled. |
Inclusion: Add the device into your network by a Z-Wave certified controller. If the controller is SmartStart compatible, refer to the controller manufacturer app that allows the DSK code to be scanned, and scan the DSK code on the inside of the battery door or on the box. If your controller is not S2/ SmartStart compatible, the device can be added using the traditional method for Z-Wave as follows: 1. Place your controller into Inclusion (Add) mode by following the controller manufacturer's instructions. 2. When the controller is ready, single click the button of LD-100. The controller should indicate that the new device was added successfully. If the controller shows it failed, repeat the procedure.
Exclusion: Remove the device from your network by a Z-Wave certified controller. The device can be removed using the traditional method for Z-Wave as follows: 1. Place your controller into Exclusion mode by following the controller manufacturer's instructions. 2. When the controller is ready, single click the button of LD-100. The controller should indicate that the new device was removed successfully. If the controller shows it failed, repeat the procedure.
When on battery power, the unit will stay awake for 5 minutes when the button is pressed to complete inclusion process. Once included, the unit will wake up every 60 seconds and detect for water. Also, the unit will wake up every hour to report temperature to the controller.
Use the manual reset procedure only in the event that the network primary controller is lost or otherwise inoperable. Press and hold the Z-Wave button on the sensor body for 10 seconds. If successful, the LED will flash 5 times rapidly.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Water Alarm | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| Moisture |
