ABUS
ABUS Z-Wave Indoor Siren
SHSG10000
Siren
HW: 255 FW: 1.02
ZM5202
6.71.03
0x0403 (1027)
0x0003 (3)
0x0000 (0)
ZC10-18096243
2018-09-25 16:02:42.38228
N/A
Enhanced 232 Slave
Always On Slave
Yes
The Z-Wave Indoor Siren comes with a High-volume siren (95 dB) and LED strobe light for alarms with deterrent effect.
The Z-Wave Indoor Siren comes with a High-volume siren (95 dB) and LED strobe light for alarms with deterrent effect. In even of alarm, the siren can operate 5 minutes even unplugged due to its integrated backup-battery. A repeater function for extending the range of the Z-wave radio signal is also included.

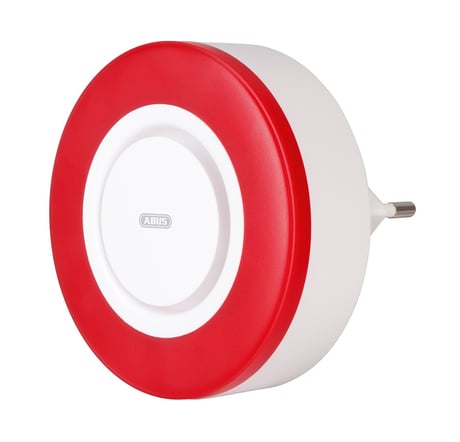

Product Picture
A.) Plug the SHSG10000 into a socket B.) Set the Gateway/Controller into inclusion mode (Click the + (Add) button in your Z-Wave App and follow the further instructions) C.) Press the Network-button 3 times within 1.5 seconds and the Status-LED will flash 3 times D:) If the Add device process is successful, the Status-LED will turn off. E: Repeat the inclusion process from step B if it was not successful.
A.) Set the Gateway/Controller into exclusion mode (Click the - (Remove) button in your Z-Wave App and follow the further instructions) B.) Press the Network-button 3 times within 1.5 seconds and the Status-LED will flash 3 times If the Remove device process is successful, the Status-LED flash 6 times. C.) Repeat the inclusion process from step B if it was not successful.
Press the Network-button for 10 seconds to factory reset the device Note: 1, This procedure should only be used if the primary gateway is not capable of acting. 2, If the multi-sensor is set to the factory setting, the status is set to ""not included"", the association settings and possible configurations are reset to default.
| Type | Value(s) |
|---|
