Everspring
PANIC BUTTON
AC136-1
Notification Sensor
HW: 1 FW: 1.01:00.01
SD3502
6.71.01
0x0060 (96)
0x000A (10)
0x0002 (2)
ZC10-18096245
2018-09-26 22:17:44.035248
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The portable panic button is a user emergency help button that is used as part of an integrated Z-Wave Plus enabled network. Its primary function is to relay a panic notification message to the control system in the event of an emergency occurring involving the user.
The AC136 Panic Button is a Z-Wave Plus enabled device and is fully compatible with any Z-Wave enabled network. The device can be set up in a Z-wave network to communicate directly with other end devices such as lighting controllers, or to report directly a Z-wave controller. The Panic Button is a portable wireless switch designed to control the Panic/Disarm status of other associated devices thru the Z-Wave controller. After receiving the signals emitted by the Panic Button, the Z-Wave controller can then give commands or operate according to its own settings. Its great compatibility with Z-Wave products makes it suitable for smart home cloud based platforms.

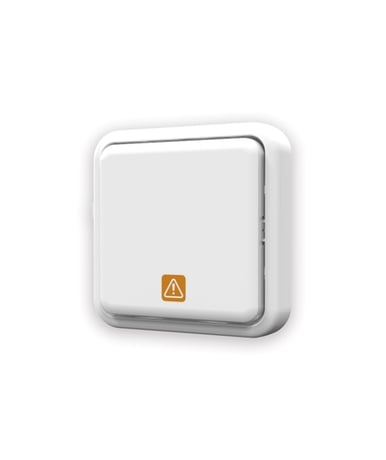

Product Picture
1.Put the Z-Wave Controller into inclusion mode. 2.Press the link button 3 times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-Wave Controller into exclusion mode. 2. Press the link button 3 times within 1.5 seconds to put the unit into exclusion mode.
After it has been included into a Z-Wave network, the detector will go to sleep but will send a Wakeup Notification Command periodically at preset period to the controller. The detector will stay awake for 10 seconds at least and then go back to sleep to conserve battery life.
1. Press the link button 3 times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press the link button again and hold for 5 seconds. 3. Node ID is excluded. The device reverts to factory default state. (This procedure should only be used when the controller is inoperable.)
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Appliance | (Refer to parameters): State idle |
