Everspring
Voice Siren
SE813-2
Siren
HW: 1 FW: 1.02:00.01
SD3502
6.71.03
0x0060 (96)
0x000C (12)
0x0003 (3)
ZC10-18096241
2018-09-26 22:24:42.025829
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
SE813 is a battery operated alarm siren with audio playback capability and built-in temperature/humidity sensor.
The product is a voice alert and notification device. Prerecorded voice sounds can be stored into its memory and played back through gateway commands. For example, when email arrives, the audio sound “you’ve got mail” can be heard from its speaker. It also has a separate piezoelectric siren to emit a deafening sound when activated under emergency. In addition, the built in digital temperature sensor and humidity sensor reports environmental condition to the controller.

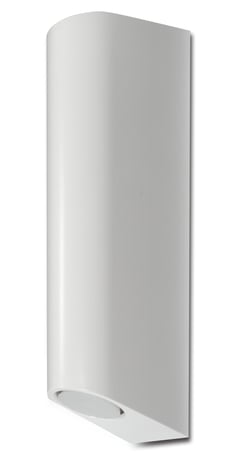

Product Picture
1 - Siren alarm period
Siren alarm period can be set 10~600 seconds.Size: 2 bytes
Default: 180
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 600 | Siren alarm period can be set 10~600 seconds. |
2 - Temperature/Humidity Auto Report period setting
Temperature/Humidity Auto Report period can be set 1~1440 minutesSize: 2 bytes
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1440 | Temperature/Humidity Auto Report period can be set 1~1440 minutes |
1. Put the Z-Wave Controller into inclusion mode. 2. Press the Link button 3 times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-Wave Controller into exclusion mode. 2. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode.
1. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press the Link button again and hold for 5 seconds. 3. Node ID is excluded. The unit reverts to factory default state. (This procedure should only be used when the controller is inoperable.)
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Siren |
|
| Sensor type |
|---|
| Air Temperature |
