Zooz
Outdoor Motion Sensor
ZSE29
Notification Sensor
HW: 1 FW: 1.01:01.08
SD3502
6.71.01
0x027A (634)
0x0001 (1)
0x0005 (5)
ZC10-18106269
2018-10-12 17:39:40.508986
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Use this S2 Outdoor Motion Sensor for smart light automation by the garage door or your front entrance .
FEATURES: - Quick and reliable motion alerts to Z-Wave hub - Outdoor ready housing (avoid direct sun and rain) - Set motion time-out and lux trigger at the sensor - Auto-inclusion for easy set-up - The latest S2 security and Z-Wave Plus chip - Powered by common batteries or Micro USB - Built-in tamper switch for extra security SPECS: - Model Number: ZSE29 - Z-Wave Signal Frequency: 908.42 MHz - Power: 3 x AA (1.5 V) batteries / Micro USB - Motion Detection: up to 30 feet - Operating Temperature: -4 – 104 F - Warm-up time: 1 minute - Range: Up to 130 feet line of sight - Installation and Use: Indoor / Outdoor

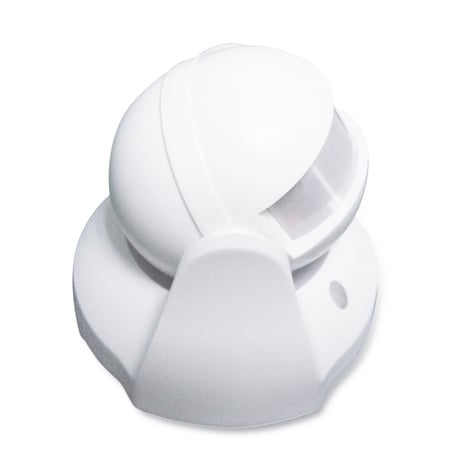

Product Picture
AUTO-INCLUSION: 1. Initiate inclusion (pairing) in the app (or web interface). Not Sure how? [email protected]. If you’re using an S2 hub, it may ask you to enter the DSK key printed on the back cover sticker to complete secure inclusion. 2. Insert the batteries or the USB adapter board. The LED indicator will start blinking and the sensor will join the network Automatically. MANUAL INCLUSION: Put your Z-Wave hub into inclusion mode and click the tamper switch 3 times quickly.
1. Bring the sensor within direct range of your Z-Wave gateway (hub). 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]). 3. Press and release the tamper switch 3 times quickly. 4. Your hub will confirm exclusion and the sensor will disappear from your controller's device list.
The sensor’s wake-up interval is set to 4 hours by default to save battery life. Use the Wake Up Command Class to adjust the interval (in seconds, working in 600s intervals, with 600 as min and 86400 as max values). During wake-up, the sensor turns the Z-Wave radio on for 10 seconds to receive communication from the hub. Long wake-up interval will not affect how often the sensor reports motion to your hub.
When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. In order to complete the process, make sure the sensor is powered, then CLICKCLICK-CLICK-CLICK’N’HOLD the tamper switch for AT LEAST 5 SECONDS. The LED indicator will turn off to indicate successful reset. The sensor will then enter auto-inclusion mode for 4 minutes. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
LUX and motion retrigger set directly at the sensor, no advanced configuration needed. Outdoor-ready.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
