Axis Communications
PIR Motion Sensor
T8341-EUR
Notification Sensor
HW: 1 FW: 1.00:00.05
SD3502
6.71.01
0x0364 (868)
0x0002 (2)
0x0001 (1)
ZC10-18096247
2018-09-28 20:07:32.938737
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
AXIS T8341-EUR PIR Motion Sensor is a wireless sensor which provides motion detection both day and night.
AXIS T8341-EUR PIR Motion Sensor is a wireless sensor which provides motion detection both day and night. With its support for wireless input/output connectivity, the PIR motion sensor can communicate wirelessly with AXIS M5065 PTZ Network camera or other connected Z-Wave Plus® controllers, creating a small security solution with less cabling. Thanks to its integrated wireless I/O connectivity, AXIS T8341-EUR enables flexible installation as the sensor can easily be moved and adapted to your needs.

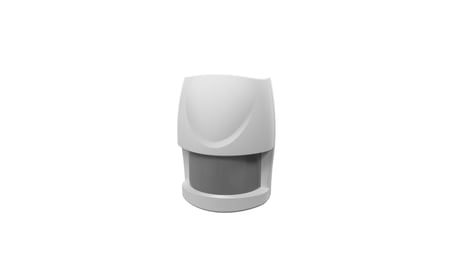

Product Picture
1 - Basic set level
When a Basic Set Command is sent and contains a value, the receiver will process it. For example, a lamp module would receive a Basic Set command which determines the dim level.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Basic set level can be set 1~99. |
3 - Sensitivity level
For optimal efficiency, it is recommended to test the detector’s response to movements from the farthest end of the coverage area when you use it for the first time. If movements cannot be detected accurately, simply adjust the sensitivity level with the Configuration Parameter #3. This parameter can be configured with a value from 1 to 10, where 1 means low sensitivity and 10 means highest sensitivity.Size: 1 byte
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | Sensitivity level can be set 1~10. |
4 - Re-trigger interval setting
The configuration parameter used to adjust the re-trigger interval after the detector has been triggered as configuration parameter #4. No response will be made during this interval if a movement is detected. The time interval can be set between 5 seconds to 3,600 seconds.Size: 2 bytes
Default: 180
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 3600 | Re-trigger interval can be set 5~3600 seconds. |
5 - Lux level
You can set a percentage for the lux level which determines when the light sensor will be activated. If the ambient illumination drops below the set percentage, and a person moves across or within the protected area, the detector will emit a Z-Wave ON command (i.e. Basic Set command (Value = Basic Set Level)) to the controller and activate connected modules and lighting. The percentage can be set between 1% to 100%.Size: 1 byte
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Lux level can be set 1~100%. |
6 - On-off duration
The on-off duration setting can be useful if the detector is connected to a module or lighting. The duration determines how long the module/lighting should stay ON. For instance, a Lamp Module turns off 100 secs after it has been turned on. The duration can be configured to last between 5 to 3600 seconds.Size: 2 bytes
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 3600 | On-off duration ca be set 5~3600 seconds. |
Auto inclusion 1. Use a screwdriver to detach the battery cover. 2. Put the AXIS M5065 camera (or other Z-Wave controller) into inclusion mode. 3. Insert 1 CR123 3V batteries into the battery compartment with the correct polarity. The LED on the device should turn ON 4. Enter PIN number into the Z-Wave controller. The PIN number can be found on the device. See where in the installation guide. 5. The inclusion process should be completed when the LED stops blinking 6. Perform test before you refit the battery cover. See How to test the Z-Wave Device. Manual inclusion 1. Use a screwdriver to detach the battery cover. 2. Put the AXIS M5065 camera (or other Z-Wave controller) into inclusion mode. 3. Insert 1 CR123 3V batteries into the battery compartment with the correct polarity. The LED on the device should turn ON 4. Press the tamper switch 3 times within 1.5 seconds to put the unit into learning (inclusion/exclusion) mode. 5. Enter PIN number into the Z-Wave controller. The PIN number can be found on the device. See where in the installation guide. 6. The inclusion process should be completed when the LED stops blinking. 7. Perform test before you refit the battery cover. See How to test the Z-Wave Device.
Manual exclusion 1. Use a screwdriver to detach the battery cover. 2. Press the tamper switch 3 times within 1.5 seconds to put the unit into learning (inclusion/exclusion) mode. 3. The exclusion process should be completed when the LED stops blinking 4. Refit the battery cover.
After the detector has been included into a Z-Wave network it will go to sleep, but it will send a wake-up notification command to the controller periodically at a preset period . The motion detector will stay awake for at least 10 seconds and then go back to sleep to conserve battery life.
1. Press the tamper switch 3 times within 1.5 seconds to put the device into exclusion mode. 2. Within 1 second of step 1, press the tamper switch again and hold until LED is off (about 5 seconds). 3. Node ID is excluded. The device reverts to factory default state and will be in auto-inclusion mode for 4 minutes. (This procedure should only be used when the controller is not responding.)
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
