ABUS
ABUS Z-Wave Smoke detector
SHRM10000
Notification Sensor
HW: 255 FW: 3.01
ZM5202
6.71.03
0x0403 (1027)
0x0002 (2)
0x0003 (3)
ZC10-18096244
2018-09-25 23:12:20.707051
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The ABUS Z-Wave Smoke detector provides reliable warning of risk of potentially fatal smoke inhalation and sounds an alarm.
The ABUS Z-Wave Smoke detector provides reliable warning of risk of potentially fatal smoke inhalation and sounds an alarm. It's compact design does not compromise the functionality but even convinces with low maintenance due to 5 years of battery life. The Smoke detector also includes a test button for manual self-testing, for test alarms and temporary muting.

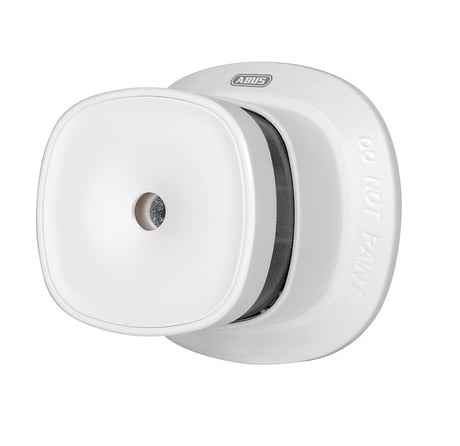

Product Picture
A.) Slide the base unit from the mounting plate and remove the safety strip from the battery compartment B.) Click the + (Add) button in your Z-Wave App and follow the further instructions C.) Press the Network-button 3 times within 1.5 seconds and the Status-LED on the base unit front will flash 3 times. The App will show if the Add device process was successful and the Status-LED will turn off. Repeat the inclusion process from step B if it was not successful.
A.) Click the - (Remove) button in your Z-Wave App and follow the further instructions. B.) Press the Network-button 3 times within 1.5 seconds and the Status-LED on the base unit front will flash 3 times. The App will show if the Remove device process was successful and the Status-LED on device will flash 6 times. Repeat the exclusion process from step A if it was not successful.
1. Remove the battery 2. Press the Network button and keep it pressed while inserting the battery again. 3. Device will restore factory settings Note: 1, This procedure should only be used if the primary gateway is not capable of acting. 2, If the multi-sensor is set to the factory setting, the status is set to ""not included"", the association settings and possible configurations are reset to default.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm | State Idle |
| Emergency Alarm | (Refer to parameters): State idle |
