ABUS
ABUS Z-Wave Magnetic Contact
SHMK10000
Notification Sensor
HW: 255 FW: 3.01
ZM5101
6.71.03
0x0403 (1027)
0x0002 (2)
0x0000 (0)
ZC10-18116318
2018-09-25 23:14:24.282376
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The ABUS Z-Wave Magnetic contact detects when windows and doors are opened and notifies your Z-Wave gateway.
The ABUS Z-Wave Magnetic contact detects when windows and doors are opened and notifies your Z-Wave gateway. Thanks to battery operation and adhesive mounting pad the installation it can be installed quickly and simple. The Magnetic contact is protected against sabotage via a tamper switch. Battery life is up to 3 years.

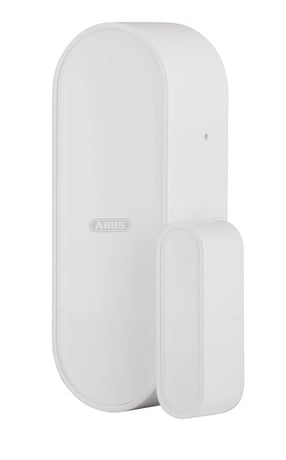

Product Picture
A.) Slide the base unit from the mounting plate and remove the safety strip from the battery compartment. B.) Click the + (Add) button in your Z-Wave App and follow the further instructions C.) Press the Tamper-button 3 times within 1.5 seconds and the Status-LED on the base unit front will flash 3 times. The App will show if the Add device process was successful and the Status-LED will turn off. Repeat the inclusion process from step B if it was not successful.
A.) Click the - (Remove) button in your Z-Wave App and follow the further instructions. B.) Press the Tamper-button 3 times within 1.5 seconds and the Status-LED on the base unit front will flash 3 times. The App will show if the Remove device process was successful and the Status-LED on device will flash 6 times. Repeat the exclusion process from step A if it was not successful.
- Wake up Notification is transmitted every 24 hours by default. - Wake up Notification is transmitted after Notification Report is transmitted
1. Press the Tamper-button 3 times within 1.5 Seconds 2. The device is now restored to factory settings Note: 1, This procedure should only be used if the primary gateway is not capable of acting. 2, If the multi-sensor is set to the factory setting, the status is set to ""not included"", the association settings and possible configurations are reset to default.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
