ABUS
ABUS Z-Wave Waterleak Detector
SHWM10000
Notification Sensor
HW: 255 FW: 3.01
ZM5101
6.71.03
0x0403 (1027)
0x0002 (2)
0x0002 (2)
ZC10-18116319
2018-09-25 23:15:10.968858
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The ABUS Z-Wave Waterleak Detector protects reliably against water damage by detecting liquids.
The ABUS Z-Wave Waterleak Detector protects reliably against water damage by detecting liquids. The detector is Ideal for monitoring cellars, washing machines, and drains. The water level sensor can be flexible installed due to 120cm cable length.

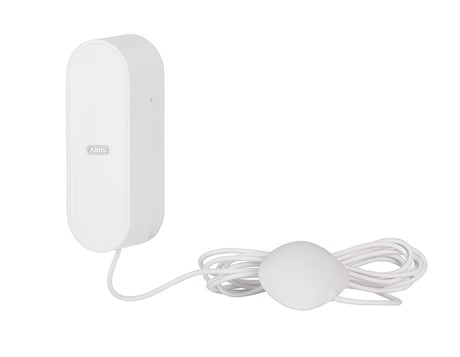

Product Picture
A.) Slide the base unit from the mounting plate and remove the safety strip from the battery compartment. B.) Click the + (Add) button in your Z-Wave App and follow the further instructions C.) Press the Tamper-button 3 times within 1.5 seconds and the Status-LED on the base unit front will flash 3 times. The App will show if the Add device process was successful and the Status-LED will turn off. Repeat the inclusion process from step B if it was not successful.
A.) Click the - (Remove) button in your Z-Wave App and follow the further instructions. B.) Press the Tamper-button 3 times within 1.5 seconds and the Status-LED on the base unit front will flash 3 times. The App will show if the Remove device process was successful and the Status-LED on device will flash 6 times. Repeat the exclusion process from step B if it was not successful.
1. Press the Tamper-button 3 times within 1.5 Seconds 2. The device is now restored to factory settings Note: 1, This procedure should only be used if the primary gateway is not capable of acting. 2, If the multi-sensor is set to the factory setting, the status is set to ""not included"", the association settings and possible configurations are reset to default.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Water Alarm | (Refer to parameters): State idle |
| Sensor type |
|---|
| Water Flow |
