Vivint
Vivint Smart Hub
CP04
Gateway
HW: 1 FW: 6.01:02.81:01.00:01.00
SD3502
6.81.01
0x0156 (342)
0x0001 (1)
0x0002 (2)
ZC10-18106282
2018-10-26 20:21:32.307889
N/A
Bridge Controller
Central Static Controller
Z-Wave enabled security panel providing integrated control of security system, Z-Wave repeater, lighting, thermostats and door locks.

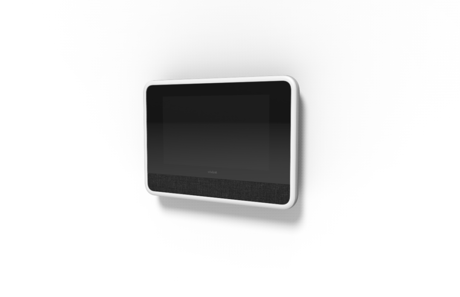

Product Picture
To add a Z-Wave device to the panel network — as with all sensors and peripheral devices — follow the detailed installation instructions included with that particular device. To access Z-Wave settings from the control panel, go to: Menu > Software Version > Installer Toolbox > Smart Home Devices > Z-Wave
To remove a Z-Wave device to the panel network — as with all sensors and peripheral devices — follow the detailed installation instructions included with that particular device. To access Z-Wave settings from the control panel, go to: Menu > Software Version > Installer Toolbox > Smart Home Devices > Z-Wave
The SmartHub’s Z-Wave network can be reset to a default state, removing all Z-Wave devices in the process. Please use this procedure only when the network primary controller is missing or otherwise inoperable. To do this, follow these instructions from the settings tab: 5.2 1. 2. 3. 4. 5. 6. On the “Support” page, touch “Software version” Enter the default installer PIN code (2203) Select “Smart Home devices” Select “Z-Wave” Select “Reset controller” Follow the on-screen instructions to complete the operation.
| Type | Value(s) |
|---|
