Zooz
S2 Multisiren
ZSE19
Siren
HW: 1 FW: 1.02:00.01
SD3502
6.71.03
0x027A (634)
0x000C (12)
0x0003 (3)
ZC10-18106268
2018-10-12 17:43:52.237681
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Use this multifunctional siren as a reliable sound alarm and enjoy the bonus of temperature and humidity monitoring.
FEATURES: - Audio and visual alarm triggered by other Z-Wave devices - Configurable siren alarm duration - Built-in temperature and humidity sensor (if Multilevel Sensor is supported) - Audio Speaker for custom sound playback (if Sound Switch is supported) - S2 security protocol and the latest 500 Z-Wave chip for faster and safer wireless communication - Tamper protection, low-battery alerts SPECS: - Model Number: ZSE19 - Z-Wave Signal Frequency: 908.42 MHz - Power: 4 x LR14 (C Cell) battery - Range: Up to 100 feet line of sight - Operating Temperature: 14-104° F (-10-40° C) - Operating Humidity: 0-80% - Installation and Use: Indoor only

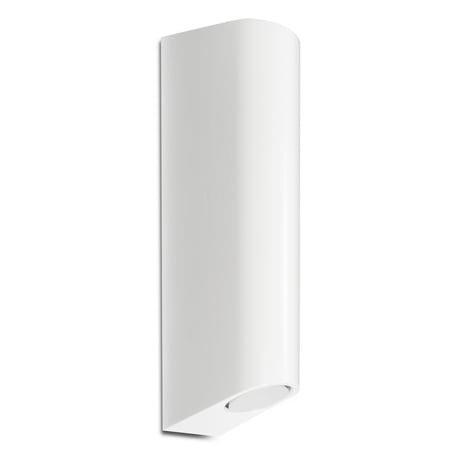

Product Picture
1 - Siren Alarm Duration
Choose how long you want the siren alarm to last for once it’s triggered. The number entered as value corresponds to the number of seconds.Size: 2 bytes
Default: 180
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 600 | seconds (alarm duration time) |
2 - Temperature and Humidity Reporting Interval
Choose how often you want the Multisiren to report temperature and humidity readings to the hub. The number entered as value corresponds to the number of minutes. Frequent reports will decrease battery life.Size: 2 bytes
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1440 | minutes (reporting interval) |
3 - Custom Sound Selection for Audio Speaker
Enable one of the custom sounds in the audio file library. The number entered as value corresponds to the file number in the library. This setting is to be used only is the new Sound Switch command class is not yet included in your controller's command class library and incorporated in the home automation interface. It's recommended that the Audio Speaker function is managed by the Sound Switch command class.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | pause (no sound) |
| 1 | 99 | sound (file) number in the library to be triggered |
AUTO INCLUSION: 1. Initiate inclusion (pairing) in the app (or web interface). Not sure how? [email protected] If you’re using an S2 hub, it may ask you to enter the DSK key printed on the back cover sticker to complete secure inclusion. 2. Insert the batteries as instructed above (if you already did, take them out for at least 15 seconds before starting the inclusion process). The LED indicator will start blinking and the Multisiren will join the network automatically. MANUAL INCLUSION: Put your Z-Wave hub into inclusion mode and click the Z-Wave button on the Multisiren 3 times quickly.
1. Bring the Multisiren within direct range of your Z-Wave gateway (hub). 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]). 3. Click the Z-Wave button on the Multisiren 3 times quickly to finalize the process. 4. Your hub will confirm exclusion and the device will disappear from your controller's device list.
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To complete the reset process manually, make sure the Multisiren is powered, then CLICK-CLICK-CLICKCLICK’N’HOLD the Z-Wave button for AT LEAST 5 SECONDS. The LED indicator will flash to confirm successful reset. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
Audio Speaker feature using the brand new Sound Switch command class. Add and manage your unique sound library, then use the audio for custom notifications in your smart home space.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Siren |
|
| Sensor type |
|---|
| Air Temperature |
| Humidity |
