ABUS
ABUS Z-Wave Multisensor
SHBW10000
Notification Sensor
HW: 3 FW: 2.02
ZM5101
6.81.00
0x0403 (1027)
0x0002 (2)
0x0001 (1)
ZC10-19016351
2019-01-16 19:05:21.830074
N/A
Enhanced Slave
Reporting Sleeping Slave
Yes
The ABUS Z-Wave Multisensor includes 4 sensors in one device: motion sensor, thermometer, hygrometer and light sensor.
The ABUS Z-Wave Multisensor includes 4 sensors in one device: motion sensor, thermometer, hygrometer and light sensor. Thanks to battery operation, the Multisensor can be installed very easily (alternative operation via USB). The Multisensor also provides extensive configuration options like the transmission interval and sensitivity of the motion detector and much more.

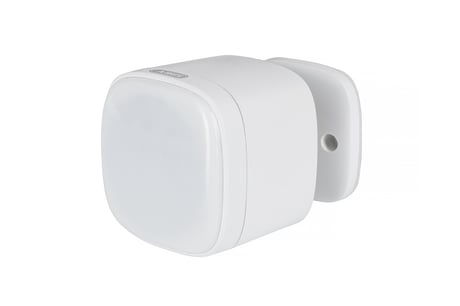

Product Picture
10 - Low Battery Power Level
Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | Low Battery Power Level of alarm threshold values |
12 - Turn on/off PIR + Set Sensitivity
Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | 0x0A indicates the highest sensitivity, 0x00 means off PIR detection function. |
13 - PIR triggers the waiting time value
Size: 2 bytes
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 15300 | the waiting time of the PIR triggering in Seconds |
14 - Whether the BASIC SET command is sent after the PIR is triggered
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unabled |
| 1 | 0 | Enabled |
15 - PIR triggers the correspondence between the value of the Basic set and the PIR state
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | PIR triggers Send the basic set command 0xff PIR alarm release send the basic set command 0x00 |
| 1 | 0 | PIR triggers send the basic set command 0x00 PIR alarm release send the basic set command 0xff. |
100 - Set 101 ~ 104 to default
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Set 101 ~ 104 to default |
101 - The interval time of sending the temperature reporting
Size: 4 bytes
Default: 7200
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | the temperature reporting is disabled |
| 1 | 2678400 | The interval time of sending the temperature reporting is 1 seconds to 31 days = 2678400 seconds |
102 - The interval time of sending the humidity reporting.
Size: 4 bytes
Default: 7200
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | the humidity reporting is disabled |
| 1 | 2678400 | The interval time of sending the humidity reporting is 1 seconds to 31 days = 2678400 seconds |
103 - The interval time of sending the luminance reporting.
Size: 4 bytes
Default: 7200
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | the luminance reporting is disabled |
| 1 | 2678400 | The interval time of sending the luminance reporting is 1 seconds to 31 days = 2678400 seconds |
104 - The interval time of sending the battery level reporting.
Size: 4 bytes
Default: 86400
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | the battery level reporting is disabled |
| 1 | 2678400 | The interval time of sending the battery level reporting is 1 seconds to 31 days = 2678400 seconds |
110 - Enable 111 ~ 114 temperature/humidity/luminance/ battery level change reporting.
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 0 | Enabled |
111 - Configuration temperature change threshold.
Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 500 | the temperature change threshold value(unit 0.1℃) |
112 - Configuration humidity change threshold.
Size: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32 | humidity change threshold value(unit %) |
113 - Configuration luminance change threshold.
Size: 2 bytes
Default: 150
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -32767 | -1 | luminance change threshold is 32767 to 65528 |
| 0 | 32766 | luminance change threshold is 0 to 32766 |
114 - Configuration battery level change threshold.
Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | battery level change threshold value(unit)% |
A.) Click the + (Add) button in your Z-Wave App and follow the further instructions b.) Press the Button on the device once. The App will show if the Add device process was successful. The Status LED will light up for 2 seconds. Repeat the inclusion process from step A if it was not successful.
A.) Click the - (Remove) button in your Z-Wave App and follow the further instructions. B.) Press the Button on the device once. The App will show if the Remove device process was successful. Repeat the exclusion process from step A if it was not successful.
Short press button for 3 times (within 1.5 Sec) then the sensor sending wake up notification to gateway, wake up for 10 seconds.
1. Keep pressing the Button on the device for more than 5 seconds (the flash interval of the Status LED is now accelerated) 2. The device is now restored to factory settings Note: 1, This procedure should only be used if the primary gateway is not capable of acting. 2, If the multi-sensor is set to the factory setting, the status is set to ""not included"", the association settings and possible configurations are reset to default.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Light sensor |
|
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
| Illuminance |
| Humidity |
