Aeotec
Nano Shutter
ZW141-D
Window Covering - No Position/Endpoint
HW: 141 FW: 2.02:01.02
ZM5101
6.71.03
0x0086 (134)
0x0303 (771)
0x008D (141)
ZC10-18116292
2018-11-01 20:13:06.08566
N/A
Enhanced 232 Slave
Always On Slave
Aeotec Nano Shutter is a Z-Wave motor controller specifically used to enable Z-Wave command and control (up/down/stop) for existing window covering motors.
Aeotec Nano Shutter is a Z-Wave motor controller specifically used to enable Z-Wave command and control (up/down/stop) for existing window covering motors. It can connect to 2 external manual switches/buttons to control the motor up/down/stop independently. Its surface has a pin socket, which can be used for connecting to the touch panel, so you can also use the touch panel to control the Nano Shutter. The wireless module is powered from the mains supply. In the event of power failure, non-volatile memory retains all programmed information relating to the units operating status. Nano Shutter is also a security Z-Wave plus device and supports Over The Air (OTA) feature for the products firmware upgrade. It can be a repeater in the Z-Wave network. Acting as a bridge for communication, it will forward Z-Wave command messages to their destinations if the originating controller is out of range from the destination node. By taking advantage of the Z-Wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices.

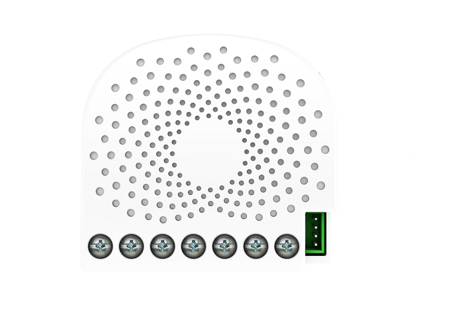

Product Picture
35 - Set the moving time from up (left) to down (right) for curtain.
Set the moving time from up (left) to down (right) for curtain. Note: the time unit is second.Size: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | The available range for time set is 1 to 127 seconds. |
80 - To set which notification would be sent to the associated devices (Group 1)
To set which notification would be sent to the associated devices (Group 1) when the state of Nano Shutter is changed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Send Nothing |
| 1 | 1 | Send Basic CC report |
85 - Set the operation mode of external switch
Set the operation mode of external switch. Note: for the description of Operation Mode 1 or 2, please refer to the user manual.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Operation Mode 1 |
| 1 | 1 | Operation Mode 2 |
120 - Configure the external switch mode for S1.
Configure the external switch mode for S1.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unidentified mode |
| 1 | 1 | Reserved |
| 2 | 2 | 3 way switch mode |
| 3 | 3 | Momentary push button mode |
| 4 | 4 | Enter automatic identification mode |
121 - Configure the external switch mode for S2.
Configure the external switch mode for S2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unidentified mode |
| 1 | 1 | Reserved |
| 2 | 2 | 3 way switch mode |
| 3 | 3 | Momentary push button mode |
| 4 | 4 | Enter automatic identification mode |
248 - Set the function of S1/S2.
Set the function of S1/S2.Size: 1 byte
Default: 83
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | -128 | the setting for sending NIF, entering RF power level test mode and factory reset are effective |
| 0 | 0 | the functions of S1 and S2 are disabled. |
| 1 | 1 | the function of sending NIF is enabled. |
| 2 | 2 | he function of entering RF power level test mode is enabled. |
| 4 | 4 | the function of factory reset is enabled. |
252 - Lock/unlock configuration parameters
Lock/unlock configuration parameters.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unlock |
| 1 | 1 | Lock |
255 - Reset the Nano Shutter
Reset the Nano Shutter to factory default.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reset all configuration parameters to factory default setting |
| 1431655765 | 1431655765 | Reset to factory default setting and removed from the z-wave network |
Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. If the Nano Dimmer has been successfully added to your Z-Wave network, its RGB LED will be solid. If unsuccessful, the red LED will be on for 2 seconds and then remain a colorful gradient, repeat the instructions above from step 1.
Turn the primary controller of Z-Wave network into exclusion mode, quick press the product’s Action button 6 times that you can find on the product's housing or toggle the external manual switch 2 times in fast succession. If the Nano Dimmer has been successfully removed from your Z-Wave network, its RGB LED will remain colorful gradient. If the removal was unsuccessful, the RGB LED will still be solid (following the state of the output load), repeat the instructions above from step 1.
Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is missing or otherwise inoperable.
Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
| Type | Value(s) |
|---|
