Zooz
S2 Dimmer
ZEN27
Light Dimmer Switch
HW: 1 FW: 1.00
ZM5202
6.71.03
0x0312 (786)
0xA000 (40960)
0xA002 (40962)
ZC10-18116309
2018-11-13 07:07:52.820295
N/A
Enhanced 232 Slave
Always On Slave
Use this S2 dimmer for fast 3-way, 4-way, and 5-way installations with existing on/off switches.
FEATURES: - Manual or Z-Wave on/off and brightness control - Simple Direct 3-Way: connect with existing on/off switches in 3-way, 4-way, and 5-way set-ups, no add-on needed (neutral wire required) - Fully adjustable ramp rate for just the right on/off speed - Double tap to full brightness feature - Remembers and restores on/off status after power failure - LED indicator signals inclusion, exclusion, reset, and setting changes - Built-in Z-Wave Plus signal repeater to extend network range - Extended compatibility with LED bulbs, no more flickering! - S2 security protocol and the latest 500 Z-Wave chip for faster and safer wireless communication - Customizable LED indicator and air-gap switch for added safety SPECIFICATIONS: - Model Number: ZEN27 - Z-Wave Signal Frequency: 908.42 MHz - Power: 120 VAC, 60 Hz - Maximum Load: 100 W LED/CFL, 300 W incandescent (100 W with both sides of heat sink tabs off) - Range: Up to 100 feet line of sight - Operating Temperature: 32-104° F (0-40° C) - Installation and Use: Indoor only

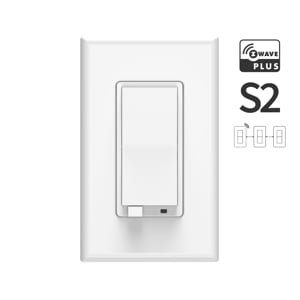

Product Picture
1 - Paddle Control
Choose if you want the upper paddle to turn the light on or turn the light off when tapped.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Upper paddle turns the light on, lower paddle turns the light off |
| 1 | 1 | Upper paddle turns the light off, lower paddle turns the light on |
2 - LED Indicator Control
Choose if you want the LED indicator to turn on when the switch (light) is on or off, or if you want it to remain on or off at all times.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED indicator is on when switch is off, LED indicator is off when switch is on |
| 1 | 1 | LED indicator is on when switch is on, LED indicator is off when switch is off |
| 2 | 2 | LED indicator is always OFF |
| 3 | 3 | LED indicator is always ON |
3 - Enable/Disable Auto Turn-Off Timer
Use this parameter to enable or disable the auto turn-off timer function.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 1 | timer enabled |
4 - Set Auto Turn-Off Timer
Use this parameter to set the time after which you want the switch to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | minutes |
5 - Enable/Disable Auto Turn-On Timer
Use this parameter to enable or disable the auto turn-on timer function.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 1 | timer enabled |
6 - Set Auto Turn-On Timer
Use this parameter to set the time after which you want the switch to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.Size: 1 byte
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | minutes |
8 - On Off Status After Power Failure
Set the on off status for the switch after power failure.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | forced to OFF (regardless of state prior to power outage) |
| 1 | 1 | forced to ON (regardless of state prior to power outage) |
| 2 | 2 | remembers and restores on/off status after power failure |
9 - Ramp Rate Control
Adjust the ramp rate for your dimmer (fade-in / fade-out effect for on / off operation). Values correspond to the number of seconds it take for the dimmer to reach full brightness or turn off when operated manually.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | seconds |
10 - Minimum Brightness
Set the minimum brightness level (in %) for your dimmer. You won’t be able to dim the light below the set value.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | % brightness |
11 - Maximum Brightness
Set the maximum brightness level (in %) for your dimmer. You won’t be able to add brightness to the light beyond the set value. Note: if Parameter 12 is set to value 0, Parameter 11 is automatically disabled.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | % brightness |
12 - Double Tap Function
Choose if you want the dimmer to turn on to full brightness or custom brightness level after you double-tap the upper paddle.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | the light will turn on to full brightness with double tap (default) |
| 1 | 1 | the light will turn on to the maximum brightness level set in Parameter 11 with double tap |
1. Initiate inclusion (pairing) in the app (or web interface) of your hub. 2. Tap the upper paddle on the switch 3 times quickly.
1. Bring your Z-Wave gateway (hub) close to the switch if possible 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]) 3. Tap the lower paddle on the switch 3 times quickly
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To complete the reset process manually, tap-tap-tap’n’hold the upper paddle for at least 10 seconds. The LED indicator will flash to confirm successful reset. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
- S2 Security - Simple Direct 3-way & 4-way (no add-on switches needed) - Control the LED indicator mode right from the switch
