Aeotec
Door/ Window Sensor Gen5
ZW120-D
Notification Sensor
HW: 120 FW: 1.05
ZM5202
6.51.10
0x0086 (134)
0x0302 (770)
0x0078 (120)
ZC10-18116307
2018-11-13 08:03:15.573439
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Aeon Labs Door/ Window Sensor Gen5 is a smart Z-Wave sensor that can detect the status of door/window's open/close in real time.
Aeon Labs Door/ Window Sensor Gen5 is a smart Z-Wave sensor that can detect the status of door/window's open/close in real time. It’s a security Z-Wave device that supports security encryption. Also it supports the “Over the Air Firmware Updating” that allows you wirelessly update its firmware if needs. It can be included and operated in any Z-Wave network with other Z-Wave certified devices from manufacturers and/or other applications.

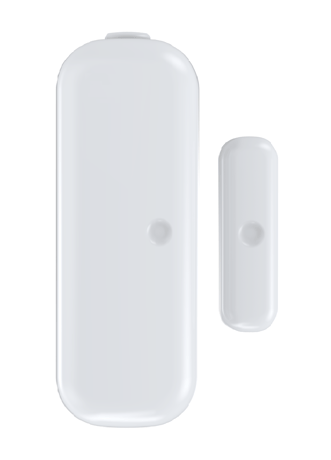

Product Picture
1 - Which value of the Sensor Binary Report will be sent when the door is Opened/Closed.
To set which value of the Sensor Binary Report will be sent when the door is Opened/Closed.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Sensor Binary Report =0xFF when the door is Closed, Sensor Binary Report= 0x00 when the door is opened. |
| 1 | 1 | Sensor Binary Report= 0x00 when the door is closed, Sensor Binary Report=0xFF when the door is opened. |
2 - Enable/disable wake up 10 minutes when re-power on the Sensor.
Enable/disable wake up 10 minutes when re-power on the Sensor.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. |
| 1 | 1 | Enable. |
3 - Which value of the Basic Set will be sent when the door is Opened/Closed.
To set which value of the Basic Set will be sent when the door is Opened/Closed.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Basic Set=0xFF when the door is Closed, Basic Set=0x00 when the door is opened. |
| 1 | 1 | Basic Set 0x00 when the door is Closed, Basic Set= 0xFF when the door is opened. |
39 - Set the low battery value.
Set the low battery value. (10% to 50%).Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | The range of low battery value can be set to 10% to 50%. |
111 - Set the interval time of battery report.
Set the interval time of battery report. Note: 1, if the value is less than 10, the time unit is second. If the value is more than 10, the time unit is 4 minutes, which means if the value is more than 10 and less than 240, the interval time is 4 minutes. If the value is more than 240 and less than 480, the interval is 8 minutes. 2, if the current battery report falls below the low battery value (configurable parameter 39), it will send battery report=0xFF.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2147483647 | The range of interval can be set to 0 to 2147483647. |
121 - To configure which sensor report will be sent when the Sensor is triggered On/Off.
To configure which sensor report will be sent when the Sensor is triggered On/Off.Size: 4 bytes
Default: 256
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 16 | 16 | Basic Set CC is selected. |
| 256 | 256 | Sensor Binary Report CC is selected. |
| 272 | 272 | Basic Set CC and Sensor Binary Report CC are selected. |
255 - Reset the Sensor.
Reset the Sensor.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reset to default settings. |
| 1431655765 | 1431655765 | Reset to default settings and excluded from the network. |
Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action Button that you can find in the back of the product.
Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action Button that you can find in back of the product.
Press the Action Button once, which will trigger sending out the Wake up notification command, press and hold the Action Button for 3 seconds, which will toggle on/off the Sensor be waked up for 10 minutes.
Press the Action Button once that you can find in back of the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable.
Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
