Eaton’s Z-Wave Plus Universal Dimmer
RF9640-N
Light Dimmer Switch
HW: 255 FW: 2.00
ZM5101
6.71.03
0x001A (26)
0x4449 (17481)
0x0501 (1281)
ZC10-18126327
2018-11-16 22:41:01.351451
N/A
Enhanced 232 Slave
Always On Slave
Eaton’s Z-Wave plus Universal dimmer replaces regular switches (where a neutral is present) to provide local and remote ON/OFF and DIM UP/Down control for most common residential lighting loads including LEDs.
Eaton’s Z-Wave plus Universal dimmer replaces regular switches (where a neutral is present) to provide local and remote ON/OFF and Dim UP/Down control for most common residential lighting loads including LEDs and certain motor loads. Each dimmer can be manually and remotely controlled by commands sent from your compatible Z-Wave certified controller. Features & Benefits: • Replaces standard switch to add local and wireless control • Compatible with most common residential lighting loads including LED, CFLs, INC, MLVs, ELVs, HAL. • Single pole and 3-Way control: Use with Z-Wave Plus Accessory dimmer RF9642-Z • Neutral is required for installation • Features 7 step blue load indicating LED light that can be dimmed in ON or OFF state • Supports Z-Wave Plus technology including S2 Security certification for advanced encryption & cybersecurity • Voice and app based control when used with compatible Z-Wave controller

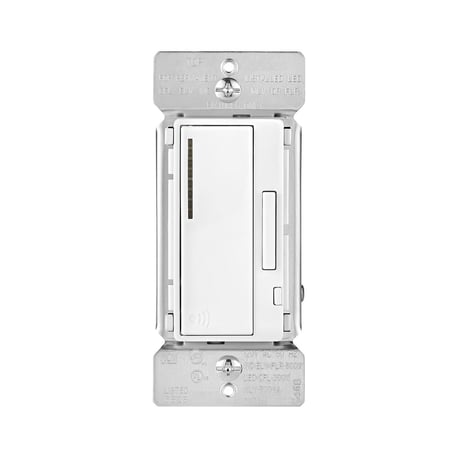

Product Picture
1 - Delayed OFF Time
Press and hold the device for 2 seconds to activate delayed OFF. This allows the user to safely exit the room before lights go OFFSize: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Delayed OFF Time |
| 0 | 0 |
2 - Panic ON Time
Panic Mode ON Time in secondsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Panic ON Time |
3 - Panic OFF Time
Panic Mode OFF Time in secondsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Panic OFF Time |
5 - Power Up State
The State that the device comes is at when the power is restored after a power outageSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Device Stays OFF |
| 2 | 2 | Device Stays ON |
| 3 | 3 | Device reverts to last state |
6 - Panic Mode Enable
Enables or Disables Panic ModeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Panic Mode OFF |
| 1 | 1 | Panic Mode ON |
7 - Dimmer Ramp Time
Time it takes to ramp up the dimmerSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Choose value between 0 to 127 for dimmer to gradually come on |
8 - Kickstart Enable/Disable
Kickstart feature makes the light come ON at full brightness before going back to presetSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Kickstart is Disabled |
| 1 | 1 | KickStart is Enabled |
9 - Reset Max/Min Levels to Factory Default
Reset Max/Min Levels to Factory DefaultSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reset to Factory Default |
11 - Set Minimum Dimming Level
Lower end trim setting. Higher the value, smaller the dimming rangeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Minimum dim level setting |
12 - Set Maximum Dimming Level
Set Maximum Dimming LevelSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Set Maximum Dimming Level |
13 - BLUE LED Brightness Level while the dimmer is ON
BLUE LED Brightness Level while the dimmer is ONSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | BLUE LED Brightness Level while the dimmer is ON |
14 - BLUE LED Brightness Level while the dimmer is OFF
BLUE LED Brightness Level while the dimmer is OFFSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | BLUE LED Brightness Level while the dimmer is OFF |
15 - Amber LED Brightness Level while the dimmer is ON
Amber LED Brightness Level while the dimmer is ONSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Amber LED Brightness Level while the dimmer is ON |
16 - Amber LED Brightness Level while the dimmer is OFF
Amber LED Brightness Level while the dimmer is OFFSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Amber LED Brightness Level while the dimmer is OFF |
1. To include this device in a Z-Wave network, select the command on your Z-Wave controller for inclusion (Install, Add Device, Add Node, Include Device, etc.). Then press the device ON/OFF button one time to include it in the network. 2. Based on the controller, the controller may ask you to scan the QR code or manually enter 5 digit code under the QR code to install the device as a secured device. You may find this QR code on the device or included in device packaging. 3. After the Device is added to the network, the blue indicator LED will stop blinking. This indicates the device is installed in the Z-Wave network.
1. To exclude this device from a Z-Wave network, select the setting on your Z-Wave controller for exclusion (Uninstall, Remove Device, Remove Node, Exclude Device, etc.). 2. Once your controller is in exclusion mode, press the device ON/OFF button one time to exclude it from the network. The LED will start blinking.
The device could be reset locally. This will cause the device to be excluded from its network and restore to factory default. Before leaving the network the switch will send a notification to the controller indicating its departure from the Z-Wave network. 1. Turn the device ON. 2. Press and hold ON/OFF button for 20 second till the LED flashes for the third time. 3. Release the ON/OFF button. 4. LED will start flashing rapidly. Once the LED starts blinking slowly, that indicates the device is not part of the network.
| Type | Value(s) |
|---|
