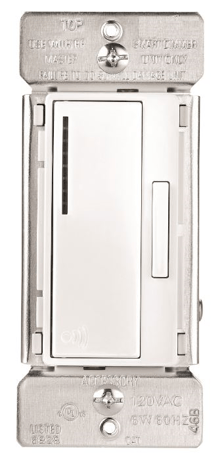

Eaton’s Z-Wave Plus Accessory Dimmer
RF9642-Z
Light Dimmer Switch
HW: 255 FW: 2.00
ZM5101
6.71.03
0x001A (26)
0x4441 (17473)
0x0502 (1282)
ZC10-18126326
2018-11-16 22:41:16.022987
N/A
Enhanced 232 Slave
Always On Slave
Eaton’s Z-Wave Plus Accessory Dimmer can be used with Eaton's Z-Wave Plus devices to provide 3-way, multi-location ON/OFF/Dim UP/Dim Down control.
Eaton’s Z-Wave Plus Accessory Dimmers can be used with Eaton's RF9640-N Universal Dimmer & other Z-Wave Plus certified devices to provide 3-way, multi-location ON/OFF/Dim UP/Dim Down control of a selected Z-Wave wireless switch without the need for traditional 3-way wiring. You can use your compatible Z-Wave certified controller to associate each accessory with up to (5) other Z-Wave load controlling devices. Features & Benefits: • Wireless accessory for Eaton’s Z-Wave Plus Universal Dimmer (RF9640-N) • Ideal for applications where no traveler wires exist for 3-Way & multi-location control • Neutral is required for installation • Supports Z-Wave Plus technology including S2 Security certification for advanced encryption & cybersecurity • Can be associated with (5) other Z-Wave Plus devices when used with a compatible Z-Wave controller
1 - Delayed OFF Time
Delayed OFF TimeSize: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Delayed OFF Time |
| 0 | 0 |
2 - Panic ON Time
Panic ON TimeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Panic ON Time |
| 0 | 0 |
3 - Panic OFF Time
Panic OFF TimeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Panic OFF Time |
| 0 | 0 |
5 - Power Up State
Power Up State - State the device reverts to when power is restoredSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Device Stays OFF |
| 2 | 2 | Device Comes ON |
| 3 | 3 | Device reverts to last state |
6 - Panic Mode Enable
Panic Mode EnableSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Panic Mode Disabled |
| 1 | 1 | Paic Mode Enabled |
7 - Dimmer Ramp Time
Dimmer Ramp TimeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Dimmer Ramp Time |
| 0 | 0 |
13 - BLUE LED Brightness Level while the dimmer is ON
BLUE LED Brightness Level while the dimmer is ONSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | BLUE LED Brightness Level while the dimmer is ON |
| 0 | 0 |
14 - BLUE LED Brightness Level while the dimmer is OFF
BLUE LED Brightness Level while the dimmer is OFFSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | BLUE LED Brightness Level while the dimmer is OFF |
| 0 | 0 |
15 - Amber LED Brightness Level while the dimmer is ON
Amber LED Brightness Level while the dimmer is ONSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Amber LED Brightness Level while the dimmer is ON |
| 0 | 0 |
16 - Amber LED Brightness Level while the dimmer is OFF
Amber LED Brightness Level while the dimmer is OFFSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Amber LED Brightness Level while the dimmer is OFF |
| 0 | 0 |
1. To include this device in a Z-Wave network, select the command on your Z Wave controller for inclusion (Install, Add Device, Add Node, Include Device, etc.). Then press the device ON/OFF button one time to include it in the network. 2. Based on the controller, the controller may ask you to scan the QR code or manually enter 5 digit code under the QR code to install the device as a secured device. You may find this QR code on the device or included in device packaging. 3. After the Device is added to the network, the blue indicator LED will stop blinking. This indicates the device is installed in the Z-Wave network.
1. To exclude this device from a Z-Wave network, select the setting on your Z-Wave controller for exclusion (Uninstall, Remove Device, Remove Node, Exclude Device, etc.). 2. Once your controller is in exclusion mode, press the device ON/OFF button one time to exclude it from the network. The LED will start blinking.
The device could be reset locally. This will cause the device to be excluded from its network and restore to factory default. Before leaving the network the switch will send a notification to the controller indicating its departure from the Z-Wave network. 1. Turn the device ON. 2. Press and hold ON/OFF button for 20 second till the LED flashes for the third time. 3. Release the ON/OFF button. 4. LED will start flashing rapidly. Once the LED starts blinking slowly, that indicates the device is not part of the network.
