Ring
Ring Flood Freeze Sensor
4SF1S80EN0
Notification Sensor
HW: 1 FW: 10.12
ZM5101
6.81.02
0x0346 (838)
0x0501 (1281)
0x0101 (257)
ZC10-19016344
2019-01-05 06:25:36.782352
N/A
Enhanced Slave
Reporting Sleeping Slave
Yes
Ring Flood/Freeze Sensor is a smart sensor for your Ring Alarm system. Place it anywhere you want to monitor for flooding or freezing conditions.
Ring Flood/Freeze Sensor is a smart sensor for your Ring Alarm system. Place the Alarm Flood and Freeze Sensor on the floor or any flat surface near a sink, refrigerator or any other water source, and get alerts when water or low temperatures are detected.

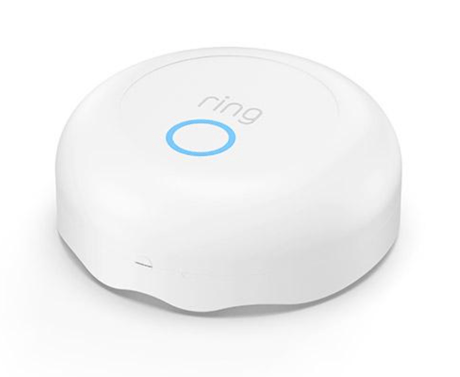

Product Picture
1 - Heartbeats
This parameter is the number seconds between heartbeats. Heartbeats are automatic battery reports on a timer after the last event.Size: 2 bytes
Default: 4200
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 4200 | Heartbeats |
2 - One shot timer
Writing to this parameter prompts the sensor to send a wakeup notification one time after this parameter's number of seconds. After which it is reset back to 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | One shot timer |
3 - Application level retries
Number of application level retries of messages either not ACKed or messages encapsulated via supervision get that did not receive a report.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | application level retries of messages |
4 - Retry Base Wait Time Period
Application Level Retry Base Wait Time Period: The number base seconds used in the calculation for sleeping between retry messages.Size: 1 byte
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | Application Level Retry Base Wait Time Period |
5 - Supervisory Report response time
The number of milliseconds waiting for a Supervisory Report response to a Supervisory Get encapsulated command from the sensor.Size: 2 bytes
Default: 1500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 5000 | The number of milliseconds waiting for a Supervisory Report response to a Supervisory Get encapsulated command from the sensor |
To include begin the setup process near your Ring Alarm Base Station. - In the Ring app, tap Set Up a Device. Choose Security Devices, then Sensors, then Ring Flood/Freeze Sensor, then tap Add Device. - To complete the setup process, follow the in-app instructions. - When prompted, scan the QR Code or enter the PIN. - This begins the pairing process. - When prompted, open the lid and pull out the clear tab. - Twist the lid to the left to unlock, then lift it to remove. Next, pull out the clear battery tab. This turns on the Sensor. - Your Base Station finds it automatically. Note: The QR Code and PIN are on the back of your sensor and in the product packaging.
To remove this Sensor from your system: - Open the side menu in the Ring app and tap Devices, then Base Station. - Next, select your Sensor, then tap the gear- shaped icon, and tap Remove Device. - When prompted, open the sensor and remove and reinstall the battery to complete the removal.
The sensor will wake up every so often and when the case is closed to send a Wake-Up Notification to allow the life line master node controller that the sensor is now available for any queued messages that the controller may have for the sensor. The time between Wake-Up Notifications can be configured with the Wake-Up Notification command class to be between 1 and 24 hours with interval steps of 1 minute.
To factory reset, press and hold the Setup button for 10 seconds. When the LED ring stops blinking, the Sensor has reset. This process disconnects the Sensor from Ring Alarm. To begin using the Sensor again, repeat the setup process in the Ring app. Note; ""Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.""
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Water Alarm | (Refer to parameters): State idle |
