RouteZ
Rocket Bulb
JZB01CCT
Light Dimmer Switch
HW: 1 FW: 2.07
ZM5101
6.81.03
0x039F (927)
0x060A (1546)
0x0021 (33)
ZC10-19016346
2018-12-10 21:40:48.856202
N/A
Enhanced 232 Slave
Always On Slave

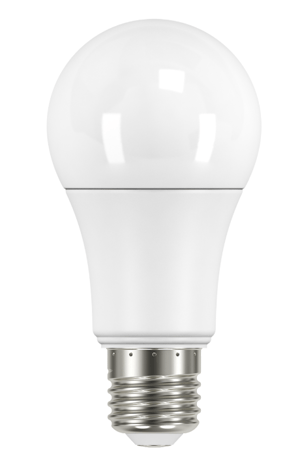

The JLabs CCT bulb is based on Z-Wave protocol, realizing basic function of on/of/dim/tunable white. The CCT Retrofit produces beautiful high quality light that you can tune, dim, and control from your smartphone or tablet
1. Standard form factor and appearance of the light bulb with 806 lm output 2. Tunable white: dimmable from 5% to 100%, tunable from 2700K to 6500K. 3. Possible to be included in groups, scenes, or schedules 4Suitable for indoor lighting: Corridors, Bedroom, Living Room, etc. 5. Voltage: 100V
2 - Enable/Disable save the lamp state.
Enable/Disable save the lamp state. 0x00 = Enable save the lamp status 0x01 =The lamp’s status is forced to open 0x02 = The lamp’s status is forced to closeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Enable/Disable save the lamp state. |
80 - Enable/Disable send notifications to associated devices
Enable to send notifications to associated devices (Group 1) when the state of LED Bulb is changed. 0 = Nothing. 1= Switch Multilevel Report.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Enable/Disable send notifications to associated devices |
81 - Adjusting the color temperature in warm white color component
Adjusting the color temperature in warm white color component. available value: 0x0A8C-0x1387 Warm White(0x0A8C(2700k) ~ 0x1387 (4999k))Size: 2 bytes
Default: 2700
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2700 | 4999 | Adjusting the color temperature in warm white color component |
82 - Adjusting the color temperature in cold white color component. available value:0x1388-0x1964 Cold White (0x1388 (5000k) ~ 0x1964 (6500k))
Adjusting the color temperature in cold white color component. available value:0x1388-0x1964 Cold White (0x1388 (5000k) ~ 0x1964 (6500k))Size: 2 bytes
Default: 6500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5000 | 6500 | Adjusting the color temperature in cold white color component. available value:0x1388-0x1964 Cold White (0x1388 (5000k) ~ 0x1964 (6500k)) |
SmartStart Inclusion:(Trigger:OFF-->ON) 1. The LED light will flash twice (first time 6500K, second time 2700K), and send node info frame. 2. Add for inclusion(SmartStart Inclusion): (If your controller does not support SmartStart inclusion, please refer to the manual for your controller for non-SmartStart inclusion.) Add the led bulb DSK into the primary controller SmartStart Provisioning List (If you don’t know how to do this, refer to its manual). a) Power cycle once for led bulb. b) The led bulb will send “Explorer Auto inclusion” frame to start SmartStart Inclusion. c) Wait a moment, the led bulb should be added to the controller.Then the led bulb will flash once(2700K) when it has been included into the network. Note: The led bulb will start SmartStart Inclusion when it is removed from a Z-Wave network. Normal Inclusion:(Trigger:OFF-->ON-->OFF-->ON-->OFF-->ON) 1. The LED light will flash twice, and send node info frame. 2. Add for inclusion(Normal Inclusion): a) Set the Z-Wave network main controller into learning mode. b) Power cycle once for led bulb. c) Wait a moment, the led bulb should be added to the controller.Then the led bulb will flash once when it has been included into the network.
Trigger:OFF-->ON-->OFF-->ON-->OFF-->ON 1. LED Bulb will light up with previously saved state and send node info frame. 2. Remove for exclusion: a) Assuming led bulb was added to controller and was power on. b) Set the Z-Wave network main controller into removing mode. c) Power cycle triple for led bulb (OFF->ON->OFF->ON->OFF->ON). d) Wait a moment, the led bulb should be removed from the controller.Then the led bulb will flash once and dim to 5%.
Reset the device : Trigger:OFF-->ON-->OFF-->ON-->OFF-->ON-->OFF-->ON-->OFF-->ON-->OFF-->ON Led bulb re-power 6 times (between 0.5-2 seconds each time); If the 6th power on, the led bulb flashes twice (first time 6500K, second time 2700K), which means that the resetting is successful. it will send “Device Reset Locally Command”. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
